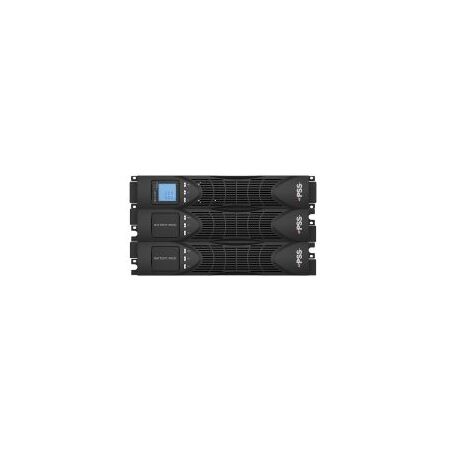

2kVA 1.8kW Online UPS 2 Battery Banks Rack Tower Enduro
Enduro 2kVA 1.8kW online double conversion UPS features 2 battery banks and rack or tower mounting. Ideal for servers and sensitive IT loads.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: ENDURO 2000VA UPS, EN2000 UPS, 2kVA Rack/Tower Online UPS, Pure Sinewave UPS
Technical Specifications
- Rated Capacity: 2000VA / 1800W
- Topology: Online double conversion
- Phase: Single-phase input and output
- Input Voltage: 230V ±20%
- Input Frequency Range: 45–65Hz
- Output Voltage: 230VAC ±2%
- Output Frequency: 50Hz ±0.1Hz
- Output Waveform: Pure sinewave
- Output Power Factor: 0.9
- Battery Type: Sealed lead-acid, maintenance-free
- Battery Configuration: 6 x 12V 9Ah batteries
- Battery Voltage: 72V DC
- Recharge Time: Approximately 5 hours to 90% after complete discharge
- Maximum Charge Current: 12A
- Communications: USB and RS-232
- Optional Management: SNMP and relay cards
- Display: LCD status display for load, battery, input, output and operating conditions
- Protection: EPO, resettable input protection, RJ45 surge protection and short-circuit protection
- Surge Protection: 2200 joules / 60,000 amps
- Noise Level: Less than 50dB at 1 metre
- Operating Temperature: 0°C to 40°C
- Relative Humidity: 0–95% non-condensing
- Mounting: 19-inch rack or tower
- Rack Height: 2RU
- Extended Battery Support: Compatible with one or more extended battery modules
- Efficiency: Up to 97% in ECO mode
- Dimensions (H x L x W): 86.5mm x 600mm x 440mm
- Weight: 26.3 kg
Key Features
- True online double-conversion power protection for sensitive IT equipment
- Pure sinewave output suitable for servers, telecommunications and networking equipment
- Zero-transfer-time design maintains continuous power conditioning during supply disturbances
- Rack-mount or tower installation options
- Extended runtime capability through compatible battery modules
- Interactive LCD display for operating and battery information
- USB and RS-232 monitoring interfaces included
- Optional SNMP and relay-card management
- Emergency Power Off function
- Generator-compatible design
- Integrated RJ45 network surge protection
- Supplied as a UPS and extended battery module configuration
Professional Installation Requirements
- Installation should be performed by a suitably qualified electrical or UPS technician. Mains connection, rack installation, battery interconnection and commissioning must follow the manufacturer's instructions and applicable Australian electrical requirements. Allow suitable ventilation and provide safe access for battery servicing.
Applications
- Server and network equipment protection
- Data and telecommunications infrastructure
- Point-of-sale systems
- CCTV and security systems
- NBN and modem equipment
- Office workstations and sensitive electronic loads
- Small commercial and industrial IT installations
Standards & Compliance
- AS 62040.1 – applicable Australian safety standard for uninterruptible power systems
- RCM/C-Tick EMC compliance stated in the manufacturer documentation
- EN 50091-2 EMC compliance stated in the manufacturer documentation
Environmental Benefits
- ECO operating mode can reduce energy consumption, with efficiency of up to 97%
- Replaceable sealed lead-acid battery architecture can extend service life and reduce whole-unit replacement waste
- Extended battery modules allow runtime capacity to be increased as requirements change
- Battery recycling should be arranged through an approved Australian battery recycling service at end of life
Warranty Information
Manufacturer warranty registration is available through the Australian Enduro/PSS distribution channel. A specific warranty period was not published in the available product documentation; confirm coverage and battery terms with the authorised distributor.
Available Now
Available through ENDURO/PSS and authorised Australian distributors; stock and lead time should be confirmed before ordering.
