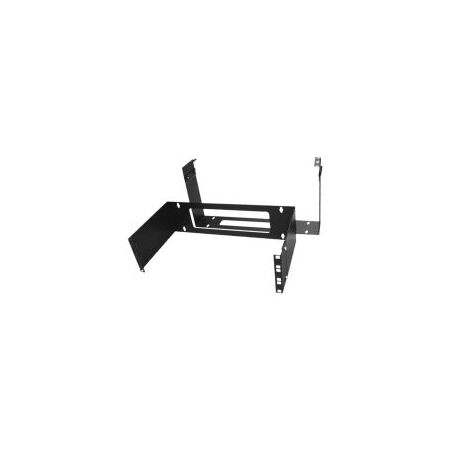

2RU Hinged Wall Mount Bracket 170mm Deep 19in Redback
Redback 2RU hinged wall mount bracket features 170mm depth, 19in rack mounting, 4 cage nuts, and 5kg rated load. Ideal for switches and patch panels.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 2RU 19-inch Hinged Wall Bracket, Redback 2RU Wall Mount Bracket, Shallow Rack Mount Bracket
Technical Specifications
- Rack Capacity: 2RU
- Rack Compatibility: Standard 19-inch equipment
- Mounting Orientation: Horizontal wall mounting
- Overall Width: 520.7mm
- Overall Depth: 170mm
- Overall Height: 88.9mm
- Rated Load: 5kg
- Included Hardware: 4 cage nuts
- Construction: Metal bracket assembly
- Finish: Black
- Hinge: Integrated hinge for rear equipment access
- Dimensions (H x L x W): 88.9mm x 170mm x 520.7mm
- Weight: 1.5 kg
Key Features
- Space-saving alternative to a full-size rack or cabinet
- Provides hinged access to the rear of mounted equipment
- Suitable for shallow network switches, patch panels and telecommunications equipment
- Compatible with standard 19-inch rack-mount equipment
- Includes four cage nuts for equipment installation
- Designed for horizontal wall mounting
- Rated to support loads up to 5kg when correctly fixed to a suitable wall structure
Professional Installation Requirements
- Installation should be completed by a competent installer using wall fixings suitable for the substrate and the 5kg rated load. Confirm the wall structure, fixing points, equipment clearance and cable routing before installation.
Applications
- Mounting shallow network switches
- Installing 19-inch patch panels
- Telecommunications and data communications equipment
- Small network and AV installations
- Residential, commercial and light industrial equipment rooms
Standards & Compliance
- AS/NZS 3084:2017 — relevant to planning telecommunications pathways, spaces, structural load ratings and fixing points in commercial installations
Environmental Benefits
- Metal construction can be recycled at end of service life
- Durable construction supports extended product service life and reduces replacement waste
- Compact wall mounting helps reduce the material and space requirements of a full-size rack cabinet
Warranty Information
Redback Racks products are covered by a 5-year manufacturer warranty against manufacturing defects, subject to the applicable warranty terms.
Available Now
Available through authorised REDBACK_RACKS distributors in Australia.
