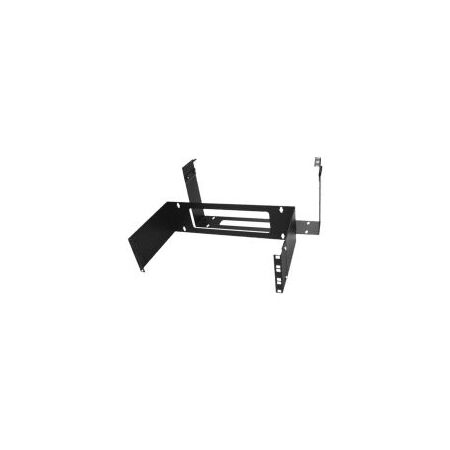

2RU Hinged Wall Mount Bracket 305mm Deep 19in Redback
Redback 2RU hinged wall mount bracket features 305mm depth, 19in rack mounting, 4 cage nuts, and 5kg rated load. Ideal for switches and patch panels.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 2RU Hinged Wall Bracket, 19-inch Hinged Rack Mount Bracket, Network Wall Mount Bracket
Technical Specifications
- Rack Capacity: 2RU
- Rack Compatibility: 19-inch standard rack equipment
- Overall Width: 520.7mm
- Depth: 305mm
- Overall Height: 88.9mm
- Rated Load: 5kg
- Mounting Hardware: 4 cage nuts included
- Construction: Steel
- Finish: Black powder-coated
- Access: Hinged design for rear equipment access
- Dimensions (H x L x W): 88.9mm x 305mm x 520.7mm
- Weight: 1.8 kg
Key Features
- Provides 2RU of 19-inch rack mounting space
- 305mm depth suits network switches, patch panels and shallow rack equipment
- Hinged construction provides access to rear connections and cabling
- Includes four cage nuts for equipment mounting
- Rated for loads up to 5kg
- Compact alternative to a full-sized rack cabinet
Professional Installation Requirements
- Wall fixing should be selected for the mounting surface and installed by a suitably competent person. Ensure the wall and fixings can safely support the bracket, installed equipment and cabling within the 5kg rated load.
Applications
- Wall mounting network switches
- Installing 19-inch patch panels
- Small telecommunications and data installations
- Home networking and communications rooms
- Mounting shallow AV and control equipment
Environmental Benefits
- Steel construction can be recycled at end of service life
- Reusable hinged design can support equipment changes without replacing the complete mounting system
- Powder-coated finish helps protect the steel and extend product service life
Warranty Information
24-month warranty for Redback Racks products against manufacturing defects, subject to the supplier’s warranty terms.
Available Now
Available through Redback Racks and authorised Australian distributors.
