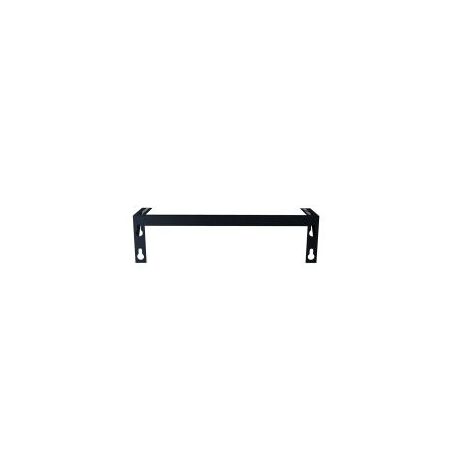

2RU Vertical Wall Mount Bracket 19in Redback
Redback 2RU vertical wall mount bracket features 19in standard rack mounting, 4 cage nuts included, and 50kg rated load. Ideal for small installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 2RU Vertical Rack Bracket, 19 Inch Wall Mount Rack Bracket, Redback V-Bracket
Technical Specifications
- Rack Capacity: 2RU
- Rack Compatibility: 19-inch standard rack equipment
- Orientation: Vertical wall mounting
- Overall Width: 500mm
- Overall Depth: 90mm
- Overall Height: 133mm
- Load Rating: 50kg
- Included Hardware: 4 cage nuts
- Finish: Black powder-coated metal
- Dimensions (H x L x W): 133mm x 90mm x 500mm
- Weight: 2 kg
Key Features
- Space-saving alternative to a full-size rack
- Supports standard 19-inch rack-mounted equipment
- Designed for vertical wall mounting in compact installations
- 50kg rated load capacity
- Includes four cage nuts
- Suitable for small network, security, communications and AV installations
Professional Installation Requirements
- Install on a suitable structural surface using fixings appropriate for the wall construction and intended load. Ensure the mounting surface and fasteners can safely support the bracket and equipment before loading.
Applications
- Small network installations
- Security and surveillance equipment mounting
- Telecommunications and data communications equipment
- Audio-visual and control equipment installations
- Under-desk or space-constrained equipment mounting
Environmental Benefits
- Durable metal construction can support extended service life and reduce replacement waste
- Powder-coated finish helps protect the bracket against surface wear and corrosion
- Compact wall-mounted design can reduce the material and space requirements of a larger rack enclosure
Warranty Information
PSS Distributors’ standard warranty is a 2-year return-to-base warranty for covered products, subject to proof of purchase and the supplier’s warranty terms. Australian Consumer Law rights also apply.
Available Now
Available through authorised REDBACK_RACKS distributors in Australia.
