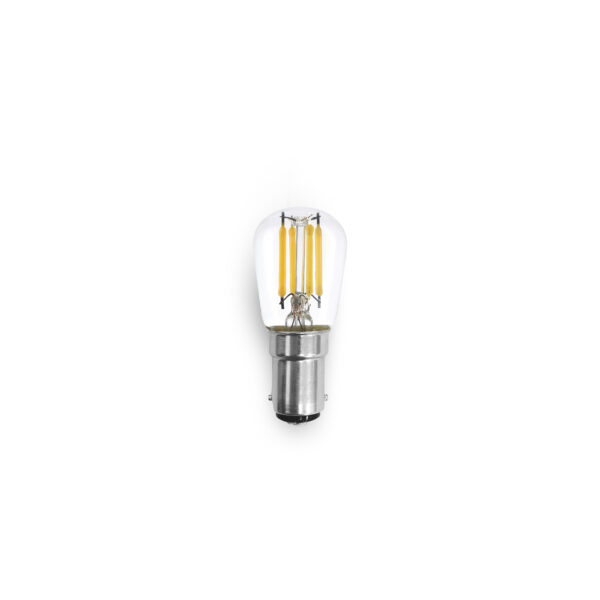

2W ST26 LED Filament Pilot Lamp B15 | Warm White | 230 Lumens | Non-Dimmable | by atom

BRAND: Atom
SKU: AT9482/SBC/WW
$8.50 List price: $10.20
+
The 2W ST26 LED Filament Pilot Lamp B15 offers a warm white glow at 3000K, perfect for residential and decorative lighting applications. With a clear glass diffuser and a fixed inline switch, this non-dimmable lamp provides 230 lumens of brightness while ensuring energy efficiency with a long LED lifetime of 15,000 hours. Ideal for pilot lamp replacements and indoor lighting needs.

Alternatively Known As: 2W LED Pilot Lamp B15, ST26 LED Filament Bulb, Warm White LED Pilot Light, Non-Dimmable LED Filament Lamp

Technical Specifications
  • IP Rating: IP20
  • Input Voltage: 230Vac (-6%/+10%)
  • Input Frequency: 50 Hz
  • Maximum Wattage: 2 W
  • Colour Rendering Index (CRI): >80
  • Bulb Type: ST26
  • Globe Base: B15 / SBC
  • Colour Temperature: 3000 K (Warm White)
  • Luminaire Lumens: 230 lm
  • Beam Angle: 360°
  • LED Package: 2835
  • LED Lifetime: 15,000 hours
  • Driver Type: Fixed output, integrated
  • Dimmable: No
  • Working Temperature Range: -20 to 40 °C
  • Switch Type: Inline
  • Product Design Life: 10 years at 4 hours daily use
  • Dimensions (H x L x W): 70mm x 26mm x 26mm
  • Weight: 0.1 kg
Key Features
  • 2W power consumption with 230 lumens output
  • Warm white color temperature at 3000K
  • Non-dimmable LED filament design
  • Clear glass diffuser for aesthetic appeal
  • Fixed adjustability with inline switch
  • Long LED lifetime of 15,000 hours
  • IP20 rated for indoor use
  • Integrated fixed output driver included
Professional Installation Requirements
  • Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper fitting.
Applications
  • Residential lighting applications
  • Decorative lighting fixtures
  • Pilot lamp replacements
  • Indoor lighting requiring warm white illumination
Standards & Compliance
  • AS/NZS 62560 – Self-ballasted lamps for general lighting services
  • AS CISPR 15 – Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipment
Environmental Benefits
  • Low power consumption reduces energy usage
  • Long LED lifetime minimizes waste and replacement frequency
  • No mercury or hazardous materials used
Warranty Information

VIP Warranty: 2 years return to base (RTB) or 500 operating hours, whichever occurs first. Domestic use warranty: 1 year RTB.

Available Now

The Atom 2W ST26 LED Filament Pilot Lamp B15 Warm White Non-Dimmable Clear is available for immediate purchase, ideal for residential and decorative lighting applications.
