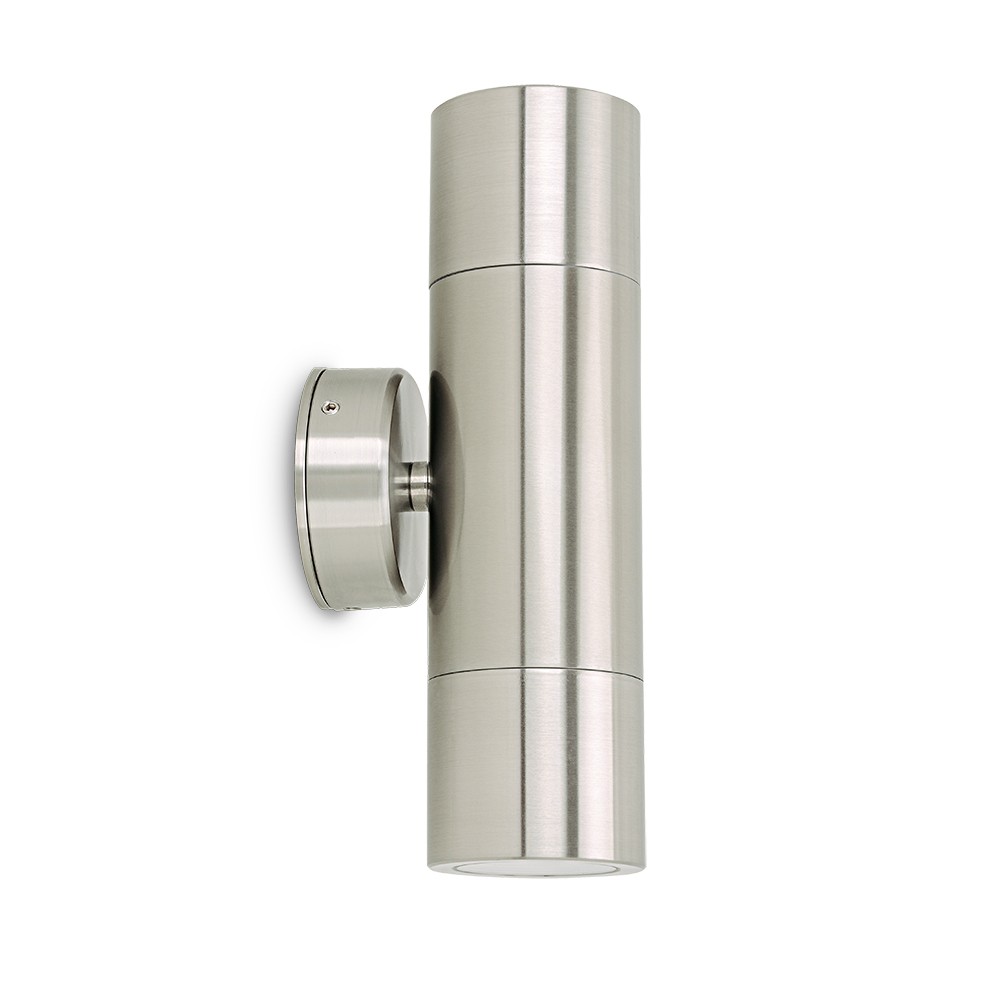

2 x 6W LED Anodised Aluminium Up/Down Light | IP65 Rated | Fixed Adjustability | Glass Diffuser | by atom
The 2 x 6W LED Anodised Aluminium Up/Down Light is perfect for both residential and commercial applications, providing efficient lighting with a total system efficiency of 78 lm/W. With an IP65 rating, this wall-mounted fixture is designed for outdoor use, ensuring durability and quality light distribution through its glass diffuser. Ideal for accent and architectural lighting, it features a sleek anodised aluminium body available in multiple finishes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Wall Up Down Light, Outdoor LED Wall Light, Anodised Aluminium LED Wall Light, GU10 LED Wall Fixture
Technical Specifications
- Total System Efficiency: 78 lm/W
- IP Rating: IP65
- IC Rating: Non-IC
- Adjustability: Fixed
- Body Material: Anodised Aluminium
- Diffuser Material: Glass
- Installation Type: Wall mount
- Working Temperature Range: -10 to 40 °C
- Input Frequency: 50 Hz
- Switch Type: Inline
- Maximum Wattage: 12 W
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Number of Lamps: 2
- Globe Base: GU10
- Globe Included: Yes
- CCT Configuration: Single or TRI-CCT options
- Maximum Bulb Wattage: 6 W per lamp
- Beam Angle: 38°
- Colour Rendering Index (CRI): >80
- Colour Temperature Options: 3000K, 4000K, 6500K
- Driver Type: Fixed output, integrated
- Dimmable: No
- Wiring Type: Re-wireable terminal block (3 pin)
- Dimensions (H x L x W): 100mm x 150mm x 120mm
- Weight: 1.2 kg
Key Features
- Total system efficiency of 78 lm/W
- IP65 rated for outdoor use
- Fixed adjustability
- Anodised aluminium body with multiple finish options including titanium and stainless steel
- Glass diffuser for quality light distribution
- Integrated fixed output driver included
- Non-dimmable
- GU10 globe base with included globes
- Beam angle of 38°
- Operating temperature range from -10 to 40 °C
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Residential: Wall-mounted lighting for homes and apartments
- Commercial: Accent and architectural lighting in offices and retail spaces
- Outdoor: Suitable for exterior wall lighting with IP65 rating
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 60598.1
- AS/NZS 60598.2.1
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long lifespan reduces waste and replacement frequency
- IP65 rating ensures durability and reduces environmental damage
Warranty Information
Standard 3 years return-to-base warranty for domestic use. VIP warranty offers 2 years onsite plus 3 years return-to-base (total 5 years) for registered users under specific terms.
Available Now
The Atom 2 x 6W LED Anodised Aluminium Up/Down Light - SER II is available for immediate purchase, ideal for residential and commercial wall-mounted lighting applications.
