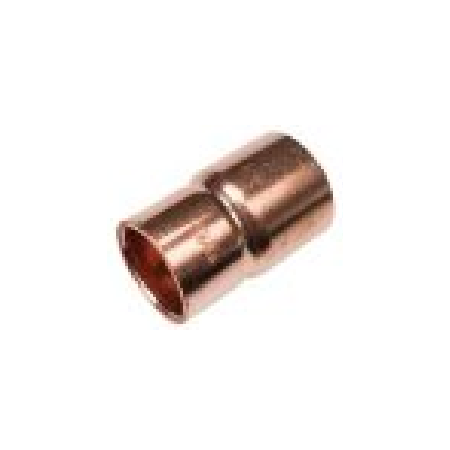

3/4 Coupling XHP with Stop | CuFe2p Copper Alloy | 130 Bar Pressure Rating | TüV Certified | by Aspen Pumps
The 3/4 Coupling XHP with Stop is designed for high pressure refrigeration systems, made from durable CuFe2p copper iron alloy for exceptional corrosion resistance. Certified to TüV standards, this coupling is ideal for HVAC and industrial piping applications, ensuring reliable performance at pressures up to 130 bar and temperatures up to 150°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3/4 Coupling XHP with Stop | CuFe2p Copper Alloy | 130 Bar Pressure Rating | TüV Certified | by Aspen Pumps
Brand: Aspen Pumps
SKU: 121-129270-34
Alternatively Known As: 3/4 inch High Pressure Copper Coupling with Stop, XHP Coupler, Sanha 130 bar Copper Fitting
Technical Specifications
- Material: CuFe2p Copper Iron Alloy
- Pressure Rating: 130 bar
- Temperature Rating: Up to 150°C
- Compliance: ASTM B 280, AS5149.2
- Certification: TüV Certified
- Joining Method: Traditional Brazed Joining
- Magnetic Identification for easy verification
- Dimensions (H x L x W): 40mm x 60mm x 40mm
- Weight: 0.15 kg
Key Features
- Made from CuFe2p copper iron alloy for high corrosion resistance
- Certified to TüV for quality assurance
- Suitable for use with R744 refrigerant at 130 bar and 150°C
- Traditional brazed joining method with magnetic identification
Professional Installation Requirements
- Installation must be performed by a qualified professional experienced in brazed copper fittings and high pressure refrigeration systems to ensure safety and compliance.
Applications
- High pressure refrigeration systems using R744 (CO2)
- Industrial piping requiring high corrosion resistance
- HVAC and refrigeration installations with brazed copper fittings
Standards & Compliance
- Complies with AS/NZS 5149.2 Refrigeration systems and heat pumps - Safety and environmental requirements
Environmental Benefits
- Durable copper alloy reduces need for frequent replacements
- Supports environmentally friendly refrigerant R744 (CO2) systems
Warranty Information
Warranty as per Aspen Pumps standard terms and conditions, typically 12 months against manufacturing defects.
Available Now
The Aspen Pumps 3/4 Coupling XHP with Stop is available for immediate purchase, ideal for high pressure refrigeration and industrial piping applications.
