Trade Discount 17%

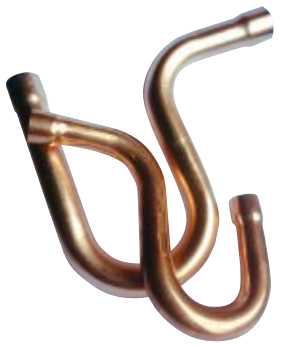

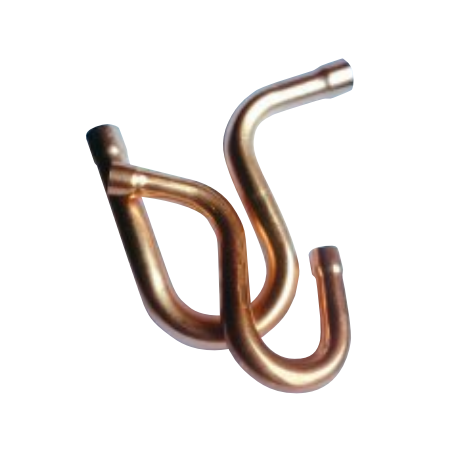

3/4 ID Copper P-Trap | High-Pressure Rated for CO2 & R-410A | ISO9001 Certified | by Aspen Pumps
The 3/4 ID Copper P-Trap is designed for high-pressure refrigeration systems, compatible with CO2 refrigerant at 60 Bar and R-410A. Manufactured in an ISO9001 accredited facility, it exceeds ISO/AS 5149.2 standards, ensuring durability and safety. Ideal for both commercial and residential HVAC applications, this fitting minimizes refrigerant leakage risk while providing long service life.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3/4 ID Copper P-Trap | High-Pressure Rated for CO2 & R-410A | ISO9001 Certified | by Aspen Pumps
Brand: Aspen Pumps
SKU: 107-12
Alternatively Known As: Copper P-Trap, Refrigeration Copper Fitting, High-Pressure Copper Fitting, SKY Copper Fitting
Technical Specifications
- Compatible with CO2 refrigerant at 60 Bar pressure
- Suitable for R-410A refrigerant systems
- Exceeds ISO/AS 5149.2 standards as well as CE and UL certifications
- Manufactured in ISO9001 accredited facility
- Batch verification burst tested for quality assurance
- Recommended use of 15% silver solder for brazing in high-pressure applications
- Dimensions (H x L x W): 50mm x 100mm x 50mm
- Weight: 0.2 kg
Key Features
- Designed, manufactured, and tested to exceed ISO/AS 5149.2 standards
- Rated for CO2 60 Bar and R-410A high-pressure refrigerant systems
- Manufactured in an ISO9001 accredited facility with rigorous QA including batch verification burst testing
- Marked fittings for safety indicating R-410A and HP-60 compatibility
- Designed to remove stress and fatigue focus points for durability
Professional Installation Requirements
- Installation should be performed by suitably qualified tradespeople following AS HB40 methodology; use 15% silver solder for brazing; ensure pipework design avoids mechanical and thermal stress.
Applications
- HVAC refrigeration systems requiring high-pressure copper fittings
- Installation in systems using refrigerants such as R-410A and CO2
- Commercial and residential refrigeration and air conditioning piping
Standards & Compliance
- Complies with AS/NZS 5149.2 – Refrigeration systems and heat pumps – Safety and environmental requirements
Environmental Benefits
- Reduces refrigerant leakage risk, minimizing environmental impact
- Manufactured to high standards ensuring long service life and reduced waste
Warranty Information
Warranty details available upon request; product manufactured under strict quality assurance standards.
Available Now
The Aspen Pumps SKY 3/4 ID Copper P-Trap fitting is available now for immediate purchase. Ideal for high-pressure refrigeration and air conditioning system installations.
