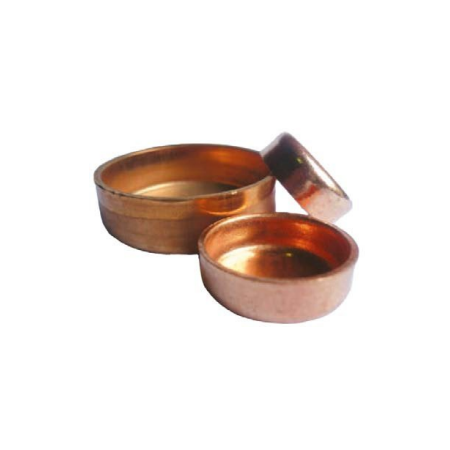

3 4 ID Copper Pipe End Cap Copper CO2 60 Bar Rated Aspen Pumps

BRAND: Aspen Pumps
SKU: 110-12
$1.90 List price: $2.50
5 Pack ($0.38 per Pack)
+ −
30 Days Return Electricians Unlock Trade Access
The 3 4 ID Copper Pipe End Cap is designed for high-pressure HVAC refrigeration systems, rated for CO2 60 Bar and R-410A applications.

Alternatively Known As: Copper Pipe End Cap, Refrigeration Copper Cap, HVAC Copper Fitting End Cap

Technical Specifications
  • Material: High-quality copper
  • Pressure Rating: CO2 60 Bar, R-410A high pressure
  • Compliance: Exceeds ISO/AS 5149.2, CE, and UL standards
  • Manufacturing: ISO9001 accredited facility with batch verification burst testing
  • Installation: Recommended use of 15% silver solder for brazing in high pressure systems
  • Dimensions (H x L x W): 20mm x 20mm x 20mm
  • Weight: 0.1 kg
Key Features
  • Designed, manufactured, and tested to exceed ISO/AS 5149.2 standards
  • Rated for CO2 60 Bar and R-410A high pressure applications
  • Manufactured in an ISO9001 accredited facility with rigorous QA including batch verification burst testing
  • Marked fittings for safety indicating R-410A and HP-60 rating
  • Designed to reduce stress and fatigue focus points for improved durability
Professional Installation Requirements
  • Installation should be performed by suitably qualified tradespeople following AS HB40 methodology; use 15% silver solder for brazing in high pressure applications.
Applications
  • HVAC refrigeration systems
  • High pressure refrigerant piping
  • R-410A and CO2 refrigeration systems
  • Commercial and industrial refrigeration installations
Standards & Compliance
  • AS/NZS 5149.2 ??? Refrigerating systems and heat pumps ??? Safety and environmental requirements
Environmental Benefits
  • Reduces refrigerant leakage risk, minimizing environmental impact
  • Manufactured to high standards ensuring long service life and reduced waste
Warranty Information

Backed by Aspen Pumps' quality assurance and warranty policies; specific warranty details available upon request.

Available Now

The Aspen Pumps SKY 3/4 ID Copper End Cap is available for immediate purchase, ideal for refrigeration and HVAC high pressure piping applications.
