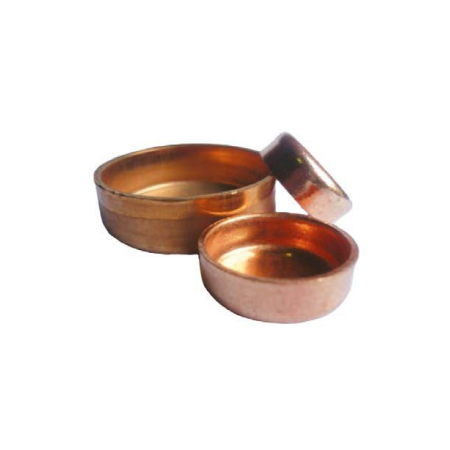

3/4 ID Copper Pipe End Cap | High-Quality Copper | CO2 60 Bar Rated | ISO9001 Certified | by Aspen Pumps
The 3/4 ID Copper Pipe End Cap is designed for high-pressure HVAC refrigeration systems, rated for CO2 60 Bar and R-410A applications. Manufactured from high-quality copper in an ISO9001 accredited facility, it ensures durability and compliance with rigorous safety standards. Ideal for commercial and industrial refrigeration installations, this end cap minimizes refrigerant leakage risk, contributing to environmental sustainability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3/4 ID Copper Pipe End Cap | High-Quality Copper | CO2 60 Bar Rated | ISO9001 Certified | by Aspen Pumps
Brand: Aspen Pumps
SKU: 110-12
Alternatively Known As: Copper Pipe End Cap, Refrigeration Copper Cap, HVAC Copper Fitting End Cap
Technical Specifications
- Material: High-quality copper
- Pressure Rating: CO2 60 Bar, R-410A high pressure
- Compliance: Exceeds ISO/AS 5149.2, CE, and UL standards
- Manufacturing: ISO9001 accredited facility with batch verification burst testing
- Installation: Recommended use of 15% silver solder for brazing in high pressure systems
- Dimensions (H x L x W): 20mm x 20mm x 20mm
- Weight: 0.1 kg
Key Features
- Designed, manufactured, and tested to exceed ISO/AS 5149.2 standards
- Rated for CO2 60 Bar and R-410A high pressure applications
- Manufactured in an ISO9001 accredited facility with rigorous QA including batch verification burst testing
- Marked fittings for safety indicating R-410A and HP-60 rating
- Designed to reduce stress and fatigue focus points for improved durability
Professional Installation Requirements
- Installation should be performed by suitably qualified tradespeople following AS HB40 methodology; use 15% silver solder for brazing in high pressure applications.
Applications
- HVAC refrigeration systems
- High pressure refrigerant piping
- R-410A and CO2 refrigeration systems
- Commercial and industrial refrigeration installations
Standards & Compliance
- AS/NZS 5149.2 – Refrigerating systems and heat pumps – Safety and environmental requirements
Environmental Benefits
- Reduces refrigerant leakage risk, minimizing environmental impact
- Manufactured to high standards ensuring long service life and reduced waste
Warranty Information
Backed by Aspen Pumps' quality assurance and warranty policies; specific warranty details available upon request.
Available Now
The Aspen Pumps SKY 3/4 ID Copper End Cap is available for immediate purchase, ideal for refrigeration and HVAC high pressure piping applications.
