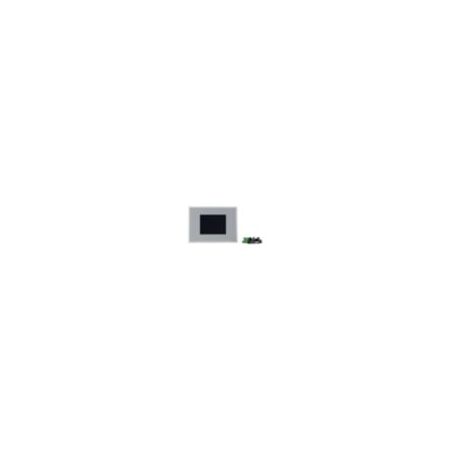

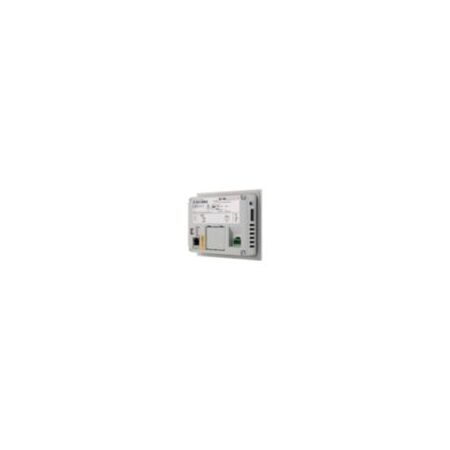

3.5 Inch Industrial Touchscreen | 320 x 240 Resolution | Ethernet & USB Connectivity | IP65 Protection by Eaton
The 3.5 inch industrial touchscreen offers a 320 x 240 resolution and Ethernet connectivity—ideal for industrial automation control panels. Built for seamless integration with easyE4 controllers, it features a fanless design for energy efficiency and a resistive touch interface for reliable operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3.5 Inch Industrial Touchscreen | 320 x 240 Resolution | Ethernet & USB Connectivity | IP65 Protection by Eaton
Brand: Eaton
SKU: Y7-198513
Alternatively Known As: Eaton XV-102 Touch Panel, easyE4 Touch Display, 3.5 inch Industrial Touchscreen, XV-102-A0-35TQRB-1E4
Technical Specifications
- Display size: 70 x 53 mm
- Resolution: 320 x 240 pixels (QVGA)
- Processor: RISC CPU, 32 Bit, 400 MHz
- Memory capacity: 64,000 kByte
- Operating system: Windows CE 5.0
- Power consumption: 9.5 W total, 2.5 W USB Slave to USB Host
- Supply voltage: 24 V DC (20.4 to 28.8 V DC)
- Degree of protection: IP65 front, IP20 rear
- Interfaces: Ethernet 100Base-TX/10Base-T, USB 2.0 host, SD card slot
- Operating temperature range: 0 °C to 50 °C
- Relative humidity: 10 - 90% non-condensing
- Touch technology: Resistive touch glass with film sensor
- Shock resistance: 15 g mechanical per IEC/EN 60068-2-27
- Dimensions (H x L x W): 100mm x 30mm x 136mm
- Weight: 0.24 kg
Key Features
- 3.5 inch TFT color display with 320 x 240 px QVGA resolution
- Ethernet interface 100Base-TX/10Base-T for network connectivity
- USB 2.0 host and SD card slot for data storage and transfer
- Fanless CPU with natural convection-based passive cooling
- Resistive touch glass with film touch sensor
- LED dimmable display lighting via software
- RISC 32-bit 400 MHz processor
- Windows CE 5.0 operating system with included license
- IP65 NEMA 4X front protection and IP20 rear protection
- Supports up to 100 online/runtime languages and 200 password levels
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration with easyE4 controllers and compliance with electrical safety standards.
Applications
- Industrial automation control panels
- Machine interface for easyE4 controllers
- Process visualization and control in manufacturing environments
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Fanless design reduces energy consumption and maintenance needs
- Supports efficient process control to reduce waste and energy use
Warranty Information
Eaton supports the product until its end of life.
Available Now
The Eaton XV-102 Touch Display for easyE4 is available now for immediate purchase. Ideal for industrial automation and machine control applications.
