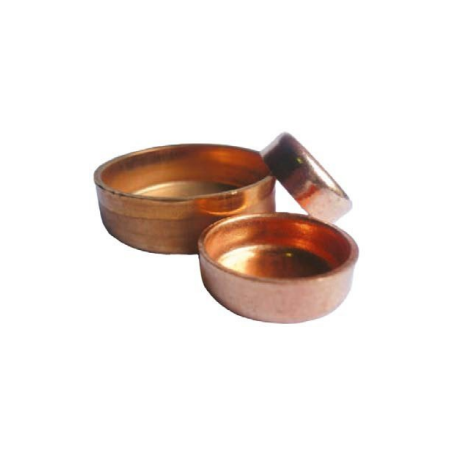

3 8 ID Copper Pipe End Cap High Pressure Rated ISO AS 5149.2 Certified Aspen Pumps
The 3 8 ID Copper Pipe End Cap is designed for high pressure HVAC refrigeration systems, compatible with CO2 60 Bar and R-410A refrigerants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Copper Pipe End Cap, Refrigeration Copper Cap, HVAC Copper Fitting End Cap
Technical Specifications
- Compatible with CO2 60 Bar and R-410A refrigerants
- Exceeds ISO/AS 5149.2 standards, CE and UL certified
- Manufactured in ISO9001 accredited facility
- Burst tested after brazing to simulate field conditions
- Recommended use of 15% silver solder for brazing in high pressure systems
- Dimensions (H x L x W): 20mm x 20mm x 20mm
- Weight: 0.1 kg
Key Features
- Designed, manufactured, and tested to exceed ISO/AS 5149.2 standards
- Rated for CO2 60 Bar and R-410A high pressure applications
- Manufactured in ISO9001 accredited facility with rigorous QA including batch verification burst testing
- Marked fittings for safety indicating R-410A and HP-60 ratings
- Designed to reduce stress and fatigue focus points
Professional Installation Requirements
- Installation should be performed by suitably qualified tradespeople following AS HB40 methodology, using 15% silver solder for brazing in high pressure applications to ensure safety and reliability.
Applications
- HVAC refrigeration systems
- High pressure refrigerant piping
- R-410A and CO2 refrigeration installations
Standards & Compliance
- AS/NZS 5149.2 ??? Refrigerating systems and heat pumps ??? Safety and environmental requirements
Environmental Benefits
- Reduces refrigerant leakage risk, minimizing environmental impact
- Manufactured to high standards ensuring long service life and reduced waste
Warranty Information
Warranty details available upon request from Aspen Pumps, typically covering manufacturing defects.
Available Now
The Aspen Pumps SKY 3/8 ID Copper End Cap is available for immediate purchase, ideal for HVAC and refrigeration system installations requiring high pressure rated copper fittings.
