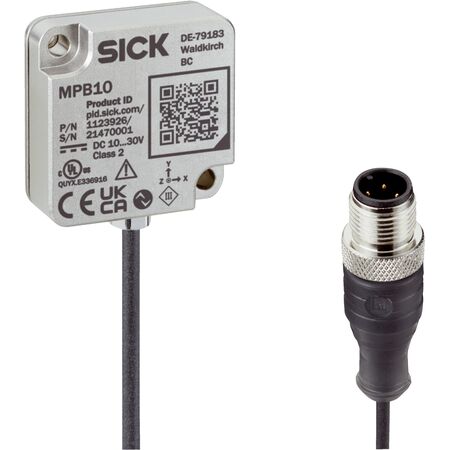

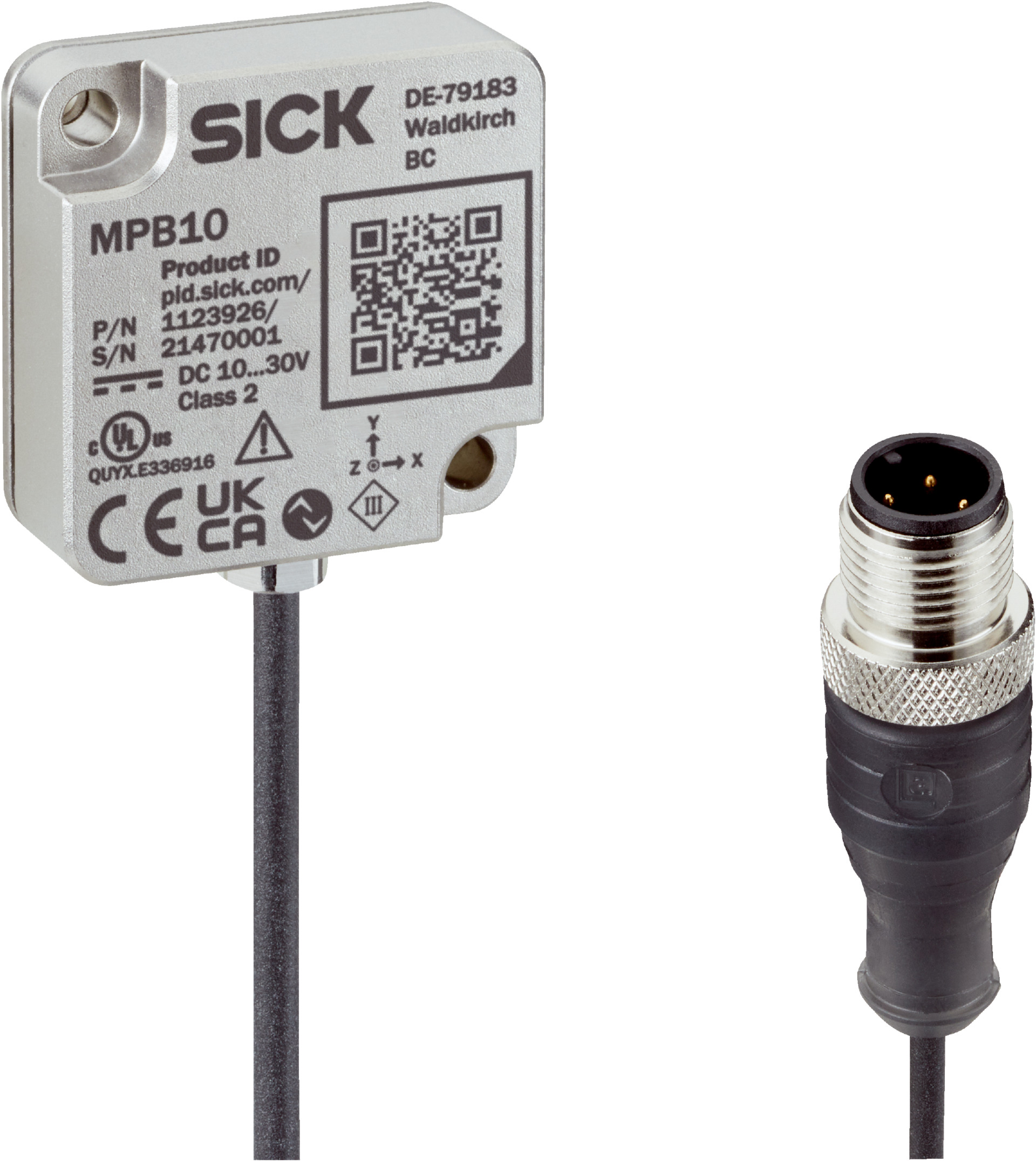

3-Axis Vibration Sensor | ±6% Accuracy | IP68 Stainless Steel Housing | by SICK
The 3-axis vibration sensor MPB10-VS00VSIQ00 offers ±6% accuracy and a measuring range up to 200 g for shock and vibration. Ideal for industrial machinery monitoring and predictive maintenance, this sensor features an IP68 rated stainless steel housing, ensuring durability in harsh environments. With automatic and IO-Link trigger options, it provides reliable performance for temperature measurement and vibration analysis.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Vibration axes: 3
- Measuring range: ±8 g (vibration), 10 g to 200 g (shock)
- Measurement error: ±6%
- Measuring range a-RMS: 0 g to 5.65 g
- Measuring range v-RMS: 0 mm/s to 100 mm/s at 88 Hz
- Frequency range: 0.78 Hz to 3200 Hz
- Frequency resolution: ≥ 0.78 Hz
- Bandpass filter: Freely parameterizable 1 to 3200 Hz
- Trigger: Automatic, IO-Link, external
- Block length: 0.02 s to 1.28 s
- Signal type: Acceleration/speed
- Vibration analysis: a-RMS, v-RMS, variance, skewness, kurtosis, peak to peak, shape factor, crest factor, impulse factor, frequency analysis
- Vibration monitoring: Severity zone evaluation per ISO 10816-3
- Contact temperature range: -40 °C to +80 °C
- Temperature accuracy: ±1 °C
- Temperature resolution: 1 °C
- Supply voltage: 10 V DC to 30 V DC
- Voltage drop: ≤ 1 V
- Continuous current: ≤ 200 mA
- Power consumption: < 350 mW
- Enclosure rating: IP68
- Protection class: III
- Shock resistance: EN 60068-2-27 (30 g, 11 ms), IEC 60068-2-31 drop test, EN 60068-2-6 vibration resistance
- Reverse polarity and short-circuit protection: Yes
- EMC: Compliant with IO-Link IEC 61131-9
- Connection: Cable with M12 connector, 0.3 m length
- Housing material: Stainless steel
- Cable material: PUR
- Communication interface: IO-Link V1.1, COM3, 5 ms cycle time
- Process data length: 160 Bit
- Status indicator: LED green/orange
- Switching output: Push-pull PNP/NPN
- Dimensions (H x L x W): 28mm x 28mm x 10mm
- Weight: 0.1 kg
Key Features
- 3-axis vibration measurement with ±6% accuracy
- Measuring range up to 200 g for shock and vibration
- Frequency range from 0.78 Hz to 3200 Hz with parameterizable bandpass filter
- Automatic, IO-Link, or external trigger options
- IP68 rated stainless steel housing for harsh environments
- Integrated temperature sensor with -40 °C to +80 °C range
- Robust shock resistance compliant with EN 60068 standards
- Digital switching output with push-pull PNP/NPN
- IO-Link V1.1 communication interface with 5 ms cycle time
- LED status indicator (green/orange)
- Operating hour counter with reset function
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper sensor placement and connection to IO-Link compatible systems.
Applications
- Industrial machinery vibration monitoring
- Predictive maintenance and condition monitoring
- Shock and temperature measurement in manufacturing environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables predictive maintenance to reduce machine downtime and resource waste
- Durable IP68 stainless steel housing extends product life and reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK MPB10-VS00VSIQ00 vibration sensor is available for immediate purchase, ideal for industrial condition monitoring and predictive maintenance applications.
