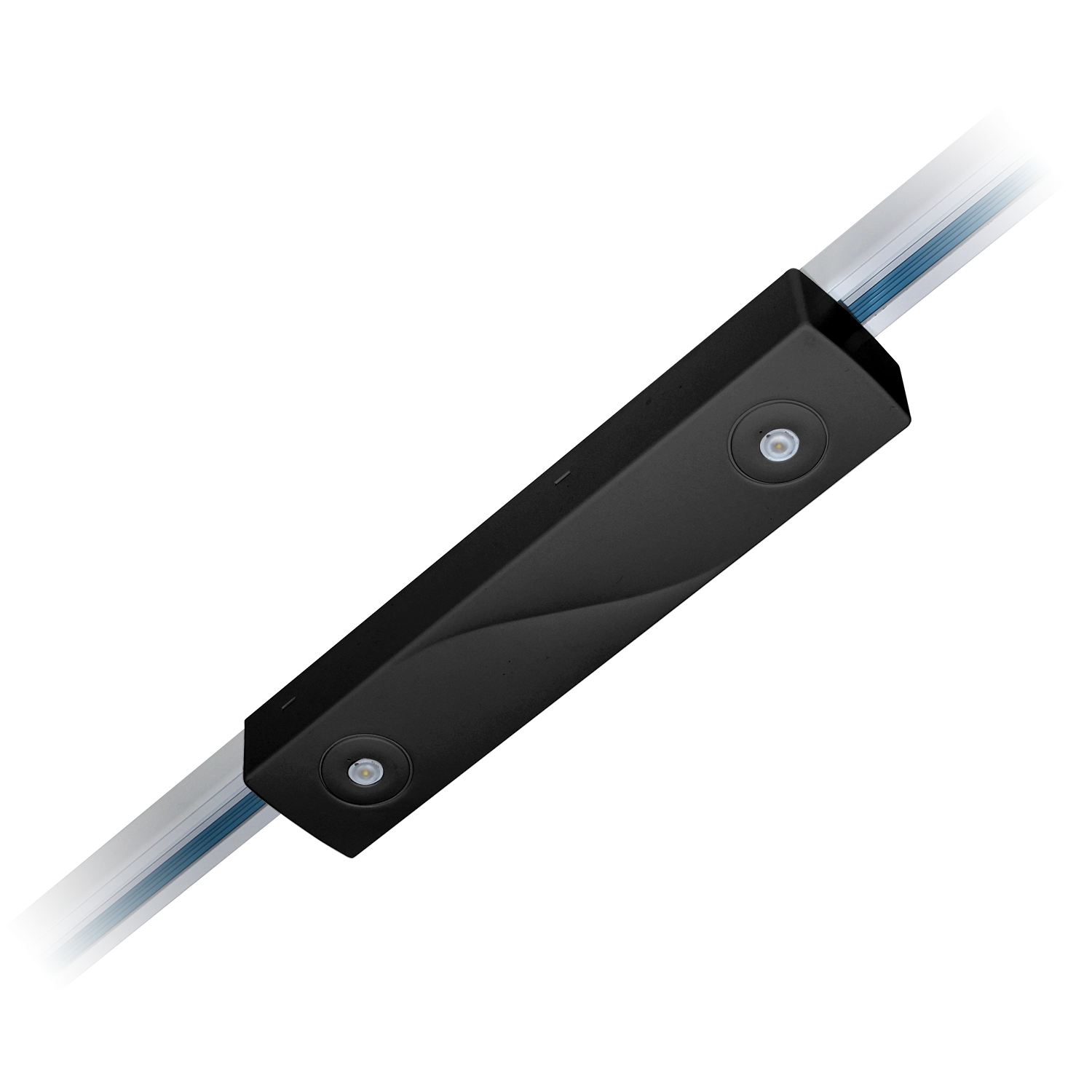

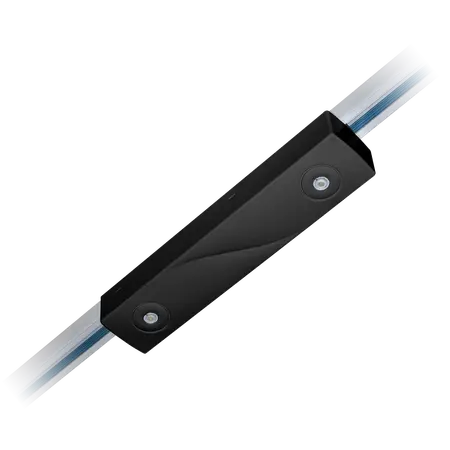

3 Circuit Track LED Emergency Light Kit Class D40 Black Domus
Domus track-mounted LED emergency light kit for 3 circuit track, classification D40, black.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus Trak 3 EM D40, 3-Circuit Emergency Track Light, D40 Emergency Track Light, Item 66096
Technical Specifications
- Model: TRAK-3-EM-D40
- Item Number: 66096
- Finish: Black
- Emergency Classification: D40
- Mounting: 3-circuit track
- Input Voltage: 240V AC
- Power: 3W
- Colour Temperature: 4000K
- Lumen Output: 250 lm
- LED Type: COB
- Beam Angle: 120°
- Ingress Protection: IP20
- Battery: LiFePO4, 3.2V 3.6Ah
- Emergency Duration: 3 hours
- Product Class: Class II
- Lifespan: 50,000 hours
- Testing: Self-test function
- Compliance: AS/NZS 2293.3
- Dimensions (H x L x W): 61mm x 315mm x 67mm
- Weight: 0.85 kg
Key Features
- Designed for 3-circuit track lighting systems
- D40 emergency lighting classification
- 3-hour emergency operation
- Energy-efficient 3W COB LED light source
- 250 lm output at 4000K
- Self-test functionality with automatic weekly, monthly and annual testing
- Polarity-reversal protection for the battery
- Switch-mode battery system
- Suitable for interior commercial installations
- Black finish for integration with dark track systems
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with the manufacturer's installation instructions and applicable Australian wiring and emergency-lighting requirements. The battery must be connected and the unit charged for 16 hours before initial use.
Applications
- Retail stores with high ceilings
- Shopping centres and commercial interiors
- Hospitality venues
- Galleries and display spaces
- Commercial fit-outs using 3-circuit track lighting
- Emergency illumination along designated escape paths
Standards & Compliance
- AS/NZS 2293.3 for emergency lighting and exit signs system design, installation and operation
Environmental Benefits
- LED technology provides lower operating energy consumption than comparable conventional emergency light sources
- Long 50,000-hour LED lifespan can reduce replacement frequency and material waste
- LiFePO4 battery technology supports rechargeable emergency operation
- Self-test functionality supports preventative maintenance and can help extend service life
- Low 3W operating power reduces ongoing electricity use
Warranty Information
Domus Lighting's current warranty statement provides a 5-year replacement warranty for emergency lighting in residential applications and a 4-year replacement warranty in commercial applications, with 4-year battery replacement coverage. Warranty claims require installation by a licensed electrician and installation in accordance with Domus instructions.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting retailers.
