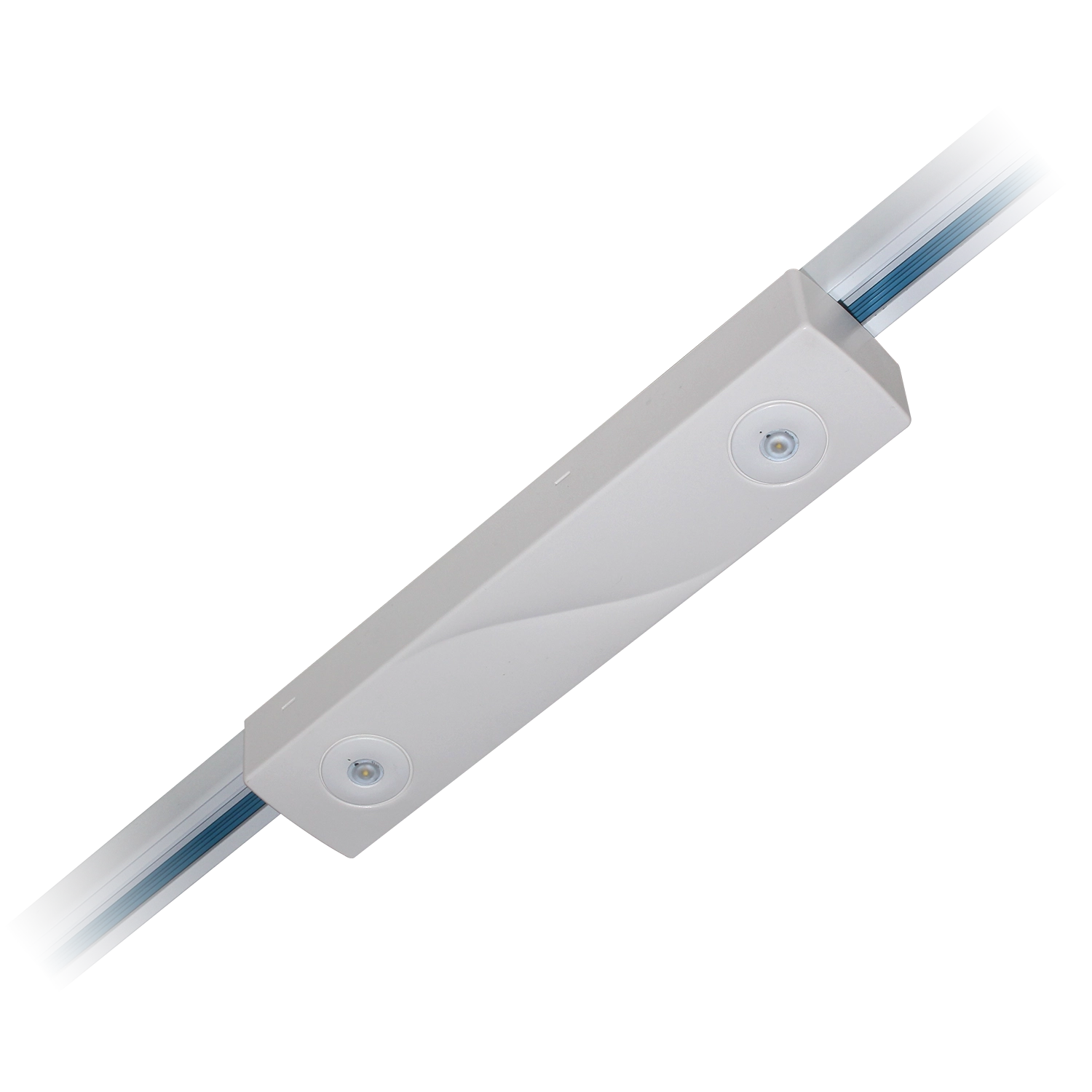

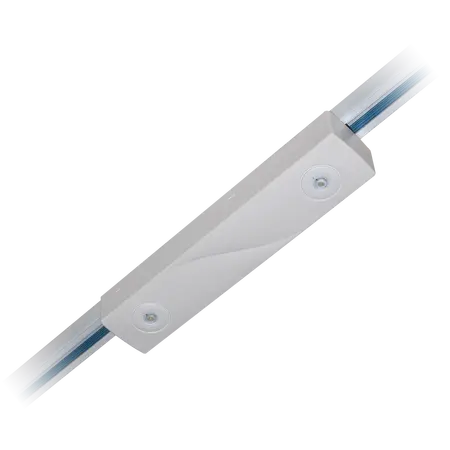

3 Circuit Track LED Emergency Light Kit Class D40 White Domus
Domus track-mounted LED emergency light kit for 3 circuit track, classification D40, white.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus Trak 3 D40 Emergency Track Light, TRAK-3-EM-D40-WHT, 66097
Technical Specifications
- Item Number: 66097
- Mounting: 3-circuit track
- Emergency Classification: D40
- Input Voltage: 240V AC
- Power: 3W
- Lumen Output: 250 lm
- Colour Temperature: 4000K
- LED Type: COB
- Beam Angle: 120°
- Battery: LiFePO4, 3.2V 3.6Ah
- Emergency Duration: 3 hours
- Ingress Protection: IP20
- Electrical Class: Class II
- Lifespan: 50,000 hours
- Testing: Self-test function
- Compliance: AS/NZS 2293.3
- Dimensions (H x L x W): 61mm x 315mm x 67mm
- Weight: 0.7 kg
Key Features
- White finish for commercial interior installations
- Designed for 3-circuit track lighting systems
- Non-maintained emergency LED operation
- Polarity-reversal protection for the battery
- Automatic commissioning, weekly, monthly and yearly testing
- Suitable for retail, shopping centre and hospitality environments
- Energy-efficient COB LED light source
- Three-hour emergency discharge duration
Professional Installation Requirements
- Installation must be performed by a professional or licensed electrician. Isolate the 240V AC supply before installation, connect the battery, and allow the unit to charge for 16 hours before initial use. Installation and emergency-lighting commissioning should follow the manufacturer's instructions and applicable wiring requirements.
Applications
- Commercial retail lighting
- Shopping centres and malls
- Hospitality venues
- High-ceiling interior spaces
- 3-circuit track lighting installations
- Emergency illumination in commercial buildings
Standards & Compliance
- AS/NZS 2293.3 for emergency luminaires and exit signs
- AS/NZS 3000 requirements should be followed for the electrical installation
Environmental Benefits
- LED technology provides an energy-efficient alternative to conventional emergency lamps
- Long 50,000-hour LED lifespan can reduce replacement frequency and product waste
- LiFePO4 battery technology supports repeated emergency-test cycles and extended service life
- Self-test functionality supports preventative maintenance and can help reduce unnecessary replacement
Warranty Information
Domus Lighting's current warranty policy lists emergency lighting with a 5-year replacement warranty and 4-year battery replacement warranty for residential applications, or a 4-year replacement warranty and 4-year battery replacement warranty for commercial applications. Warranty eligibility requires installation by a licensed electrician and compliance with the installation guidelines.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
