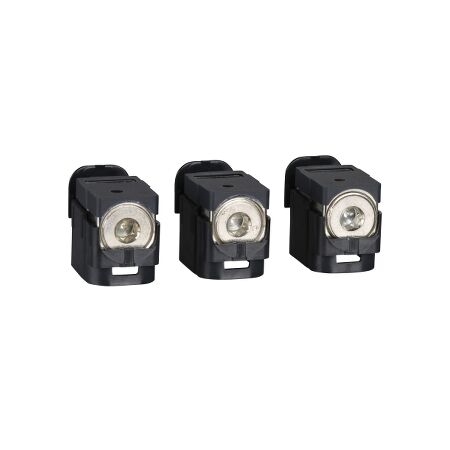

3 Connectors (1x 25-95MM²) | 1000V AC/DC | Flame Retardant | by Clipsal
The 3 Connectors (1x 25-95MM²) are designed for efficient wiring in electrical distribution boards and switchboards. With a robust construction and compatibility for both copper and aluminium conductors, these connectors ensure reliable electrical connections. Ideal for licensed electricians, they support safe and compliant installations in commercial and residential settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3 Connectors (1x 25-95MM²) | 1000V AC/DC | Flame Retardant | by Clipsal
Brand: Clipsal
SKU: SCHLV429227
Alternatively Known As: Clipsal cable connector block, 3-way electrical connector, 25-95mm² connector, heavy duty terminal block, SCHLV429227
Technical Specifications
- Number of connectors: 3
- Cable size compatibility: 25-95mm²
- Material: High-grade insulating plastic with metal terminals
- Voltage rating: 1000V AC/DC
- Current rating: Up to 232A (depending on cable size)
- Suitable for copper and aluminium conductors
- Flame retardant housing
- Dimensions (H x L x W): 35mm x 100mm x 40mm
- Weight: 0.25 kg
Key Features
- Accommodates cable sizes from 25mm² to 95mm²
- Three connectors in a single block for efficient wiring
- Robust construction for reliable electrical connections
- Suitable for copper and aluminium conductors
- Easy installation and secure fit
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with Australian standards and safety regulations.
Applications
- Electrical distribution boards
- Industrial switchboards
- Commercial and residential wiring installations
- Power distribution systems
- Panel building and maintenance
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Supports efficient power distribution, minimizing energy loss
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal 3 Connectors (1x 25-95MM²) SCHLV429227 is available for immediate purchase. Ideal for electrical distribution boards, switchboards, and power systems requiring secure and reliable cable connections.
