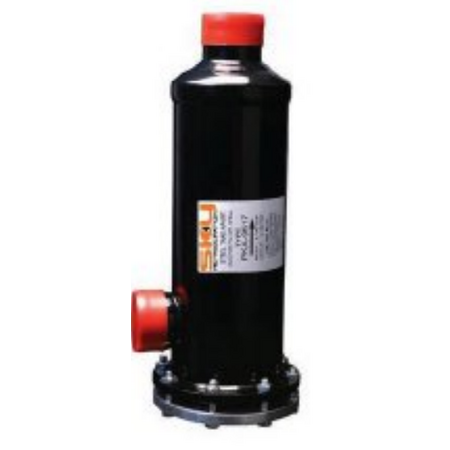

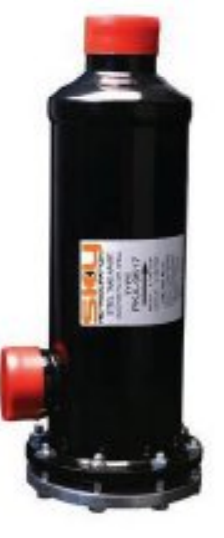

3 Core - 1-5/8 SOL High Pressure Filter Drier | ISO Compliant | Anti-Corrosion Finish | by Aspen Pumps
The 3 Core - 1-5/8 SOL High Pressure Filter Drier is designed for HVAC systems requiring robust filtration and drying capabilities. With a safe working pressure of 4,380 kPa and a large secondary mesh filter for efficient particulate removal, it’s perfect for commercial and industrial refrigeration applications. Built to handle R-410a and CO2 refrigerants, this durable vessel ensures long-lasting performance and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3 Core - 1-5/8 SOL High Pressure Filter Drier | ISO Compliant | Anti-Corrosion Finish | by Aspen Pumps
Brand: Aspen Pumps
SKU: 302-2603
Alternatively Known As: 3 Core Filter Drier Shell, High Pressure Drier Vessel, HVAC Filter Vessel
Technical Specifications
- Manufactured in accordance with ISO/AS 5149.2
- Safe Working Pressure (SWP): 4,380 kPa
- Connection size: 1 5/8 inch
- Length: 424 mm
- Liquid and suction capacity calculated at evaporating temps -15°C and 4.4°C, condensing temps 30°C and 32°C
- Large secondary mesh filter for particulate removal with minimal pressure drop

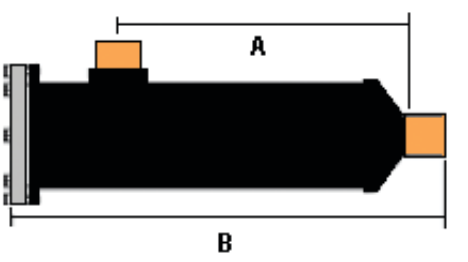

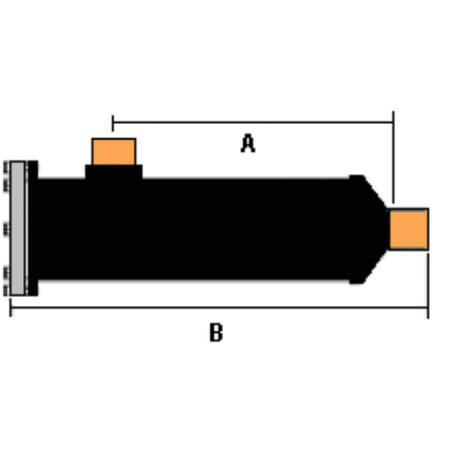

- Dimensions (H x L x W): 100mm x 424mm x 100mm
- Weight: 3.5 kg
Key Features
- Handles high pressures of R-410a standard and is CO2 upgradeable
- Double plated steel end plate with stainless steel bolts for extended service life
- Anti-corrosion powder coat finish
- Solid copper connections for ease of installation and increased service life
- Large secondary mesh filter enabling particulate removal with minimal pressure drop
Professional Installation Requirements
- Installation by a qualified HVAC technician or licensed professional is recommended to ensure compliance with safety and performance standards.
Applications
- HVAC systems requiring high-pressure filter and drier shells
- Commercial and industrial refrigeration systems
- Air conditioning systems using R-410a and CO2 refrigerants
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration safety and environmental requirements
Environmental Benefits
- Supports use of environmentally friendly refrigerants like R-410a and CO2
- Durable construction reduces replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to Aspen Pumps warranty policy for details.
Available Now
The Aspen SKY Pressure Vessel 3 Core - 1-5/8 SOL is available for immediate purchase, ideal for commercial and industrial HVAC and refrigeration applications.
