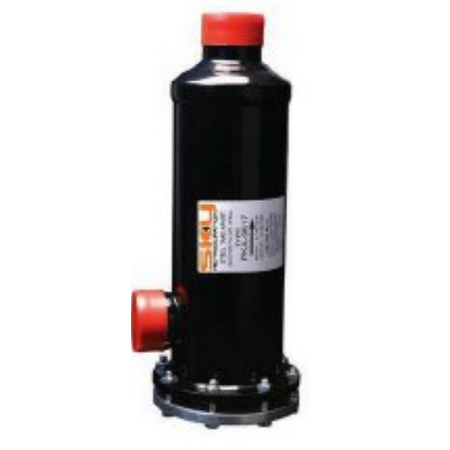

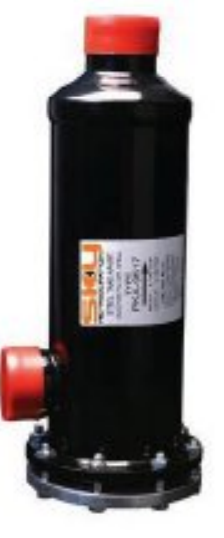

3 Core - 2-5/8 SOL Pressure Vessel | High Pressure R-410a Compatible | Anti-Corrosion Finish | by Aspen Pumps
The 3 Core - 2-5/8 SOL Pressure Vessel is designed for HVAC systems requiring high-pressure accessible filter and drier shells. Built with double plated steel end plates and solid copper connections, it ensures durability and ease of installation. Ideal for commercial and industrial refrigeration systems, this vessel supports efficient operation while reducing energy consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3 Core - 2-5/8 SOL Pressure Vessel | High Pressure R-410a Compatible | Anti-Corrosion Finish | by Aspen Pumps
Brand: Aspen Pumps
SKU: 302-4203
Alternatively Known As: Pressure Vessel 3 Core 2-5/8 SOL, Accessible Filter Drier Shell, HVAC Filter Drier Vessel
Technical Specifications
- Manufactured in accordance with ISO/AS 5149.2
- Safe Working Pressure (SWP): 4,380 kPa
- Double plated steel end plate with stainless steel bolts
- Anti-corrosion powder coat finish
- Solid copper connections
- Large secondary mesh filter for particulate removal with minimal pressure drop
- Connection size: 2 5/8 inches
- Length: 424 mm

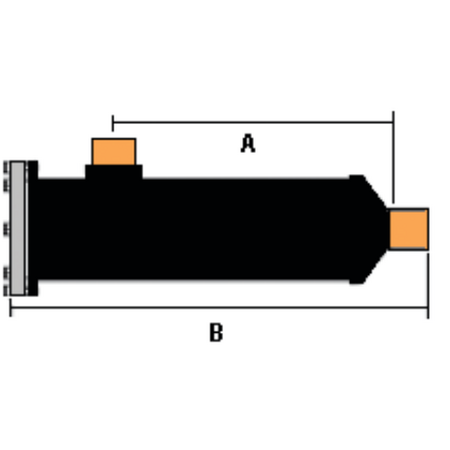

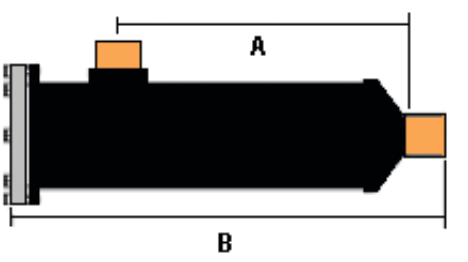

- Dimensions (H x L x W): 100mm x 424mm x 100mm
- Weight: 3.5 kg
Key Features
- Handles high pressures of R-410a standard and is CO2 upgradeable
- Double plated steel end plate with stainless steel bolts for extended service life
- Anti-corrosion powder coat finish with solid copper connections for ease of installation and increased service life
- Large secondary mesh filter enabling particulate removal with minimal pressure drop
Professional Installation Requirements
- Installation by a qualified HVAC technician or refrigeration professional is recommended to ensure system integrity and safety.
Applications
- HVAC systems requiring high-pressure accessible filter and drier shells
- Commercial and industrial refrigeration systems
- Systems using R-410a refrigerant and CO2 upgradeable applications
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration systems safety and performance
Environmental Benefits
- Supports efficient refrigeration system operation reducing energy consumption
- Durable corrosion-resistant materials extend product life reducing waste
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years against manufacturing defects.
Available Now
The Aspen Pumps SKY Pressure Vessel 3 Core - 2-5/8 SOL is available for immediate purchase, ideal for commercial and industrial refrigeration and HVAC applications.
