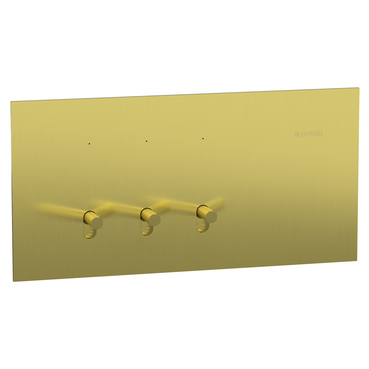

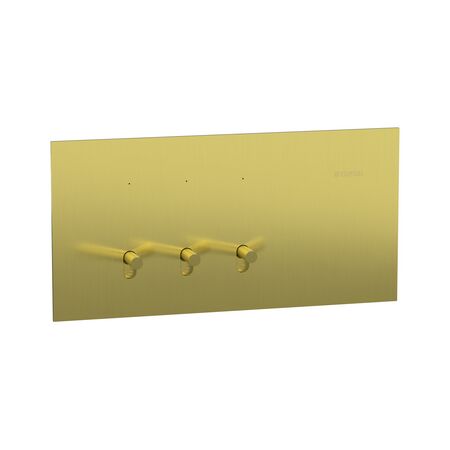

3 Gang Horizontal Toggle Switch | 10AX Rated | 230/240V | LEDi Compatible | by Clipsal
The 3 Gang Horizontal Toggle Switch is designed for efficient lighting control in residential, commercial, and industrial settings. With a rated operational voltage of 230/240V and a current capacity of 20A/16AX, it supports LEDi lamps up to 250W. This flush-mounted switch features screw terminals for easy installation and is mercury-free, ensuring compliance with RoHS standards for a safer environment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 2 Gang Horizontal Switch 10AX | 20A Rated Current | Flush Mounting | by Clipsal
Brand: Clipsal
SKU: CLI1042TA-BB
Alternatively Known As: 2 Gang Horizontal Switch, 10 Amp Toggle Switch, Clipsal 2G Switch
Technical Specifications
- Device presentation: complete product
- Number of gangs: 2 gang
- Rated operational voltage: 230/240 V
- Rated current: 20 A/16 AX
- Control type: toggle switch
- Connections: screw terminals
- Device mounting: flush
- Number of rocker: 1
- Installation direction: horizontal
- Load type: LEDi lamp 0...250 W
- Clamping connection capacity: 4 x 1.5...3 x 2.5 mm²
- Screwdriver shape: Philips No 2, square drive no 1 (SQ1)
- Wire stripping length: 10 mm
- Fixing mode: screw
- Fixing center: 84 mm
- Switch function: 1-pole 1/2-way
- Ambient air temperature for operation: 0...45 °C
- Relative humidity: 10...95 %
- Material: ceramic
- Dimensions (H x L x W): 74mm x 56mm x 148mm
- Weight: 0.2 kg
Key Features
- 2 gang toggle switch with 1-pole 1/2-way function
- Rated operational voltage: 230/240 V
- Rated current: 20 A/16 AX
- Flush mounting with screw fixing
- Screw terminals for secure wiring
- Compatible with LEDi lamps 0...250 W
- Mercury free and RoHS compliant
- Ambient operating temperature: 0 to 45 °C
- Relative humidity tolerance: 10 to 95%
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Residential: Lighting control in homes
- Commercial: Office and retail lighting control
- Industrial: Suitable for LEDi lamp loads up to 250W
Standards & Compliance
- Complies with AS/NZS 60669 for switches and control devices
Environmental Benefits
- Mercury free design reduces environmental hazards
- Compliant with RoHS and environmental regulations to minimize harmful substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Clipsal warranty terms for details.
Available Now
The Clipsal Switch Horiz 2G 10AX CLI1042TA-BB is available for immediate purchase, ideal for residential and commercial lighting control applications.
