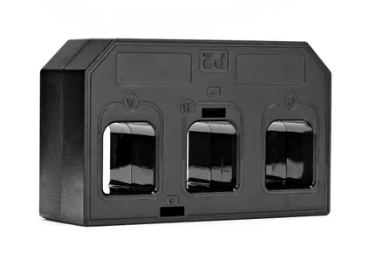

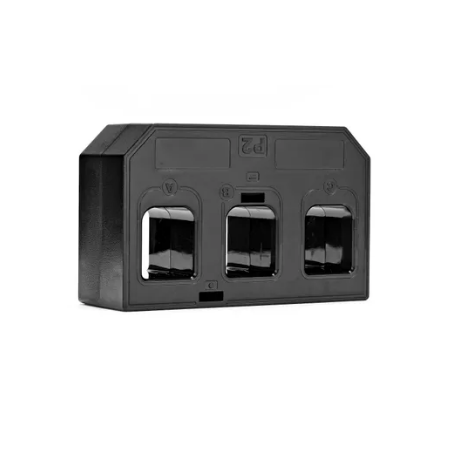

3 in 1 CT 630A/5A 32mm Opening 45mm Centres RJ12 3m Lead Bovara
Bovara 3 in 1 metering current transformer features 630A/5A ratio, 100mA output, 32mm opening, 45mm centres and 3m RJ12 lead. Ideal for CT-connected energy meters.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Three-Phase Current Transformer, 3-in-1 CT, RJ12 Metering CT, Energy Meter Current Transformer
Technical Specifications
- Primary Current: 630A
- Metering Ratio: 630A/5A equivalent
- Secondary Output: 100mA
- Configuration: Three-phase, 3-in-1 current transformer
- Phase Aperture: 32mm x 27mm per phase
- Phase Centres: 45mm
- Connection: RJ12
- Lead Length: 3m
- Rated Frequency: 50Hz or 60Hz
- Accuracy Class: Class 0.5 or Class 1, subject to meter configuration
- Maximum System Voltage: Up to 720V
- Dielectric Strength: 3kV for 1 minute
- Continuous Overload: Up to 1.2 times rated current
- Construction: Solid-core, panel-mounted housing
- Dimensions (H x L x W): 82mm x 142mm x 39mm
- Weight: 0.6 kg
Key Features
- Combines three phase current transformers in one compact housing
- Designed for CT-connected energy meters and electrical submetering
- RJ12 plug-and-play connection simplifies meter wiring
- 32mm phase openings suit compatible conductors or busbars
- 45mm phase centres suit compatible three-phase metering layouts
- Supplied with a 3m RJ12 connection lead
- Suitable for AC energy monitoring and measurement applications
- Compatible with meters requiring a 100mA external CT input
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000, applicable electricity distributor requirements and the connected meter manufacturer's instructions. Confirm that the meter accepts a 100mA CT input before installation, and do not leave the current-transformer secondary circuit open while energised.
Applications
- CT-connected energy meters
- Commercial and industrial electricity submetering
- Building management system energy monitoring
- Solar photovoltaic and renewable energy monitoring
- Switchboard power monitoring
- Load profiling and power consumption analysis
Standards & Compliance
- AS 61869.2:2021 – applicable requirements for current transformers; confirm product certification where required
- AS/NZS 3000:2018 – electrical installation and wiring requirements
Environmental Benefits
- Enables accurate energy monitoring to support identification of energy-saving opportunities
- Supports load profiling and power management in commercial and industrial electrical systems
- Long service life can reduce replacement frequency and associated material waste
Warranty Information
Bovara does not publish a specific warranty period for this current transformer. Warranty coverage and terms should be confirmed with the supplying distributor.
Available Now
Available through authorised Bovara distributors in Australia.
