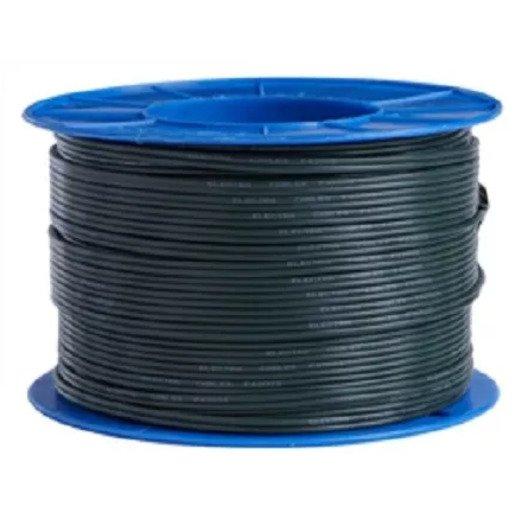

3 Pair Shielded Data Cable | 7/0.3mm Conductor | PVC Insulation | Aluminium Tape Screening | @100M | by Electra Cables
The 3 Pair Shielded Data Cable features a 7/0.3mm conductor and PVC insulation, making it ideal for data transmission in both industrial and commercial settings. With aluminium tape screening for superior interference protection, this cable is designed for low voltage applications up to 240V, ensuring reliable performance and compliance with AS/NZS standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Conductor: Plain annealed copper wire
- Insulation: PVC V90HT or V75
- Screening: Aluminium tape with polyester mylar tape and 7/0.20 mm tinned copper drain wire
- Sheath: PVC 5V-90 black
- Voltage Rating: Up to 240V (not for mains power)
- Compliance: AS1125, AS/NZS 3808
- Dimensions (H x L x W): 10mm x 100000mm x 10mm
- Weight: 2.5 kg
Key Features
- Plain annealed copper wire conductor for enhanced conductivity
- PVC V90HT or V75 insulation for excellent thermal protection
- Aluminium tape screen with polyester mylar tape lapping and 7/0.20 mm tinned copper drain wire for superior interference protection
- Durable black PVC 5V-90 sheath material
- Voltage rating suitable for up to 240V, not for mains power connection
- Complies with AS1125 and AS/NZS 3808 standards
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with low voltage data cabling standards to ensure optimal performance and compliance.
Applications
- Data transmission for internal and external use
- Low voltage signal wiring up to 240V
- Industrial and commercial communication systems
Standards & Compliance
- Complies with AS/NZS 3808 – Electrical cables – Polymeric insulated
Environmental Benefits
- Durable PVC sheath extends cable life reducing waste
- Efficient conductor materials reduce energy loss during transmission
Warranty Information
Standard manufacturer warranty applies. Please refer to Electra Cables for detailed warranty terms.
Available Now
The Electra Cables 7/0.3 X 3PR O/A SHLD 100M is available for immediate purchase, ideal for data transmission and low voltage communication applications.
