3-Phase Control Relay | 5A, 208-480V AC | LED Indicators | Modular Design by Clipsal
3-phase control relay with 5A current and 208-480V AC supply—ideal for industrial and commercial automation. Built for reliability, with multifunction capabilities and LED status indicators.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

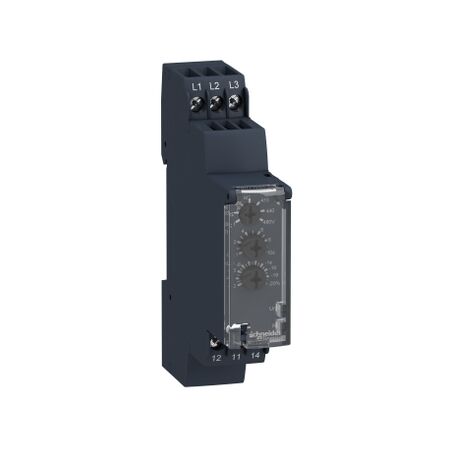

Product Name/Title: Harmony Control Relays, Modular multifunction 3-phase supply Control Relay, 5 A, 1 CO, 208...480 V AC
Brand: Clipsal
SKU: RM17TU00
Alternatively Known As: 3-Phase Control Relay, Multifunction Relay, Modular Control Relay
Technical Specifications
- Rated current: 5 A
- Supply voltage: 208...480 V AC
- Electrical durability: 100,000 cycles
- Mechanical durability: 30,000,000 cycles
- Insulation resistance: > 500 MOhm at 500 V DC
- IP Rating: IP20 (terminals), IP30 (casing)
- Control circuit frequency: 50...60 Hz +/- 10 %
- Power consumption: 0...22 VA at 400 V AC 50 Hz
- Dimensions (H x L x W): 90mm x 100mm x 17.5mm
- Weight: 0.13 kg
Key Features
- Multifunction control relay for 3-phase supply
- LED indicators for power and relay status
- Adjustable time delay for fault response
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Control systems for machinery and equipment
- Commercial: Automation in commercial buildings
- General: Any application requiring 3-phase control
Standards & Compliance
- Complies with IEC 60255-1 for safety and performance standards.
Environmental Benefits
- Packaging made with recycled cardboard
- Green Premium product status
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Harmony Control Relay is available now for immediate purchase. Ideal for industrial and commercial automation applications.
