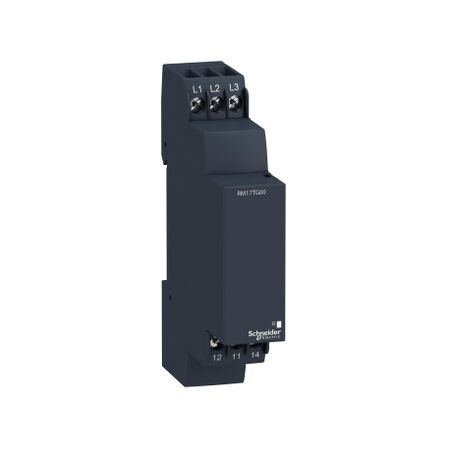

3 Phase Control Relay 5A | 208-480V AC | Modular Design by Clipsal
3-phase control relay with 5A rated current and 208-480V AC range—ideal for industrial and commercial automation. Built for high durability with 100,000 electrical cycles and modular design for easy integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Harmony Control Relays, Modular 3 phase supply Control Relay, 5A, 1CO, 208...480V AC
Brand: Clipsal
SKU: RM17TG00
Alternatively Known As: 3 Phase Control Relay, Modular Control Relay, Harmony Relay
Technical Specifications
- Rated current: 5A
- Insulation resistance: > 500 MOhm at 500 V DC
- Connections: screw terminals for various wire sizes
- Electrical durability: 100,000 cycles
- Mechanical durability: 30,000,000 cycles
- IP rating: IP20 (terminals), IP30 (casing)
- Operating temperature: -20...50 °C
- Relative humidity: 95% at 55 °C
- Control circuit voltage: 208...480 V AC
- Power consumption: 0...22 VA at 400 V AC 50 Hz
- Dimensions (H x L x W): 90mm x 100mm x 17.5mm
- Weight: 0.13 kg
Key Features
- 3-phase control relay with 5A rated current.
- LED local signaling for relay ON.
- High electrical durability of 100,000 cycles.
- Wide voltage range of 208...480V AC.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Control systems for machinery and equipment
- Commercial: Automation in buildings and facilities
Standards & Compliance
- Complies with IEC 60255-1 for safety and performance standards.
Environmental Benefits
- Packaging made with recycled cardboard.
- Green Premium product status.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Harmony Control Relay is available now for immediate purchase. Ideal for industrial and commercial automation applications.
