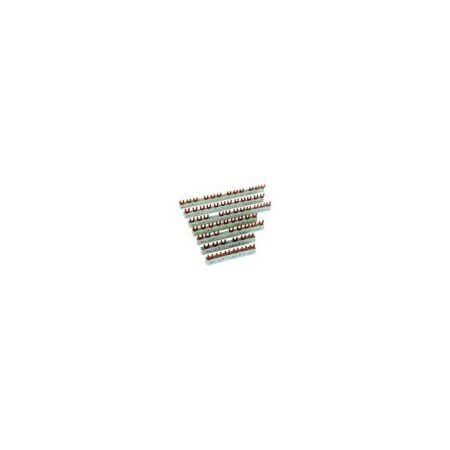

3-Phase Modular Busbar 80A | Insulated Design | 6 Modular Spacings | 415V by Eaton
3-phase modular busbar rated for 80A with insulated design and 6 modular spacings—ideal for electrical distribution systems. Built for safe and efficient circuit breaker connections, ensuring compliance with AS/NZS 3000 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3-Phase Modular Busbar 80A | Insulated Design | 6 Modular Spacings | 415V by Eaton
Brand: Eaton
SKU: Y7-291470
Alternatively Known As: Eaton xPole Busbar, EVG Busbar 3 Phase, 3 Pole Busbar 80A, Modular Busbar 6 Modules
Technical Specifications
- Rated operational voltage (Ue) - max: 415 V
- Rated surge voltage: 4 KV
- Rated uninterrupted current (Iu): 80 A
- Rated conditional short-circuit current (Iq): 25 kA
- Number of poles: Three-pole
- Number of modular spacings: 6
- Cross section: 16 mm²
- Electric connection type: Fork
- Suitable for number of devices: 2
- Dimensions (H x L x W): 10.4mm x 33mm x 103mm
- Weight: 0.052 kg
Key Features
- Insulated busbar for safety
- Three-pole design suitable for 3-phase systems
- Rated uninterrupted current of 80A
- Rated conditional short-circuit current of 25kA
- Electric connection type: Fork
- Suitable for 2 devices
- Cross section of 16 mm²
- 6 modular spacings
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper connection.
Applications
- Electrical distribution systems
- Busbar connections for miniature circuit breakers
- Combined residual current/power circuit breaker setups
- Residual current circuit breaker installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances
- Durable insulated design reduces risk of electrical faults and waste
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton Moeller series xPole EVG-16/3PHAS/6MODUL busbar is available for immediate purchase, ideal for electrical distribution and circuit breaker busbar applications.
