3 Phase Monitoring Relay | 380-415VAC | Phase Sequence & Loss Detection | DIN Rail by NHP
3 phase monitoring relay with 380-415VAC voltage range and phase sequence detection—ideal for industrial and commercial applications. Built for voltage stability, with DIN rail mounting and neutral loss monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

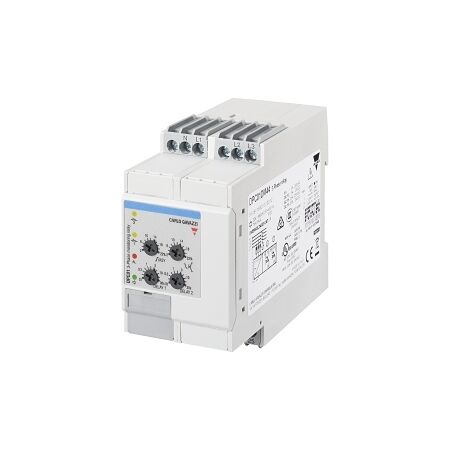

Product Name/Title: Carlo Gavazzi Monitoring Relay 3 Phase Neut Over/Under/Voltage-Phase-Seq/Phase-Loss 380-415VAC 2CO
Brand: NHP
SKU: DPC01DM48
Alternatively Known As: 3 Phase Monitoring Relay, Voltage Phase Sequence Relay, Phase Loss Relay
Technical Specifications
- Rated Operating Voltage: 380-480 V
- Voltage Measuring Range: 304-585 V
- Rated Frequency: 50-60 Hz
- Rated Operation Current: 8 A
- Over Voltage Category: III
- Degree of Protection: IP20
- Material Contact: Silver tin-oxide
- Suitable for DIN Rail Mounting: Yes
- Storage Temperature: -30-80 °C
- Dimensions (H x L x W): 80mm x 99.5mm x 45mm
- Weight: 0.5 kg
Key Features
- Phase failure detection
- Phase sequence monitoring
- Phase imbalance monitoring
- Neutral loss monitoring
- Under voltage and over voltage detection
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Monitoring electrical systems in manufacturing and processing plants
- Commercial: Ensuring voltage stability in commercial buildings
- General: Any application requiring phase monitoring and protection
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Enhances energy efficiency by preventing equipment damage due to voltage issues.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Carlo Gavazzi Monitoring Relay is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable phase monitoring.
