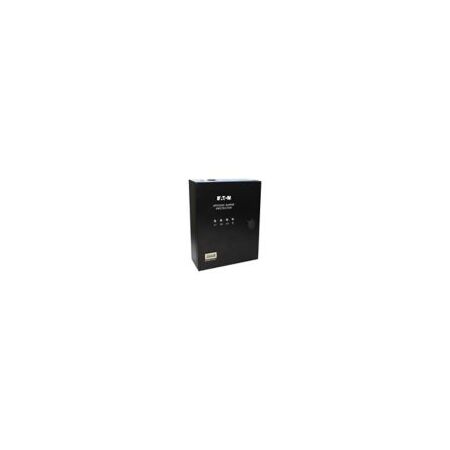

3 Phase Shunt Diverter 200kA | 3 Mode Protection & Alarm | IP50 Rated by Eaton
Protect your electrical systems with the Eaton 3 Phase Shunt Diverter, featuring a 200kA maximum discharge current and 3 mode protection with alarm. Ideal for point of entry surge protection, this device ensures reliability and longevity for your electrical equipment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3 Phase Shunt Diverter 200kA | 3 Mode Protection & Alarm | IP50 Rated by Eaton
Brand: Eaton
SKU: SPD3200-TN-E
Alternatively Known As: Eaton Surge Protection Device, 3 Phase Surge Diverter, SPD3200-TN-E
Technical Specifications
- Fault current: 200 kA
- Operating temperature range: -40 °C to 70 °C
- Connection: Three-phase
- Class: Class 2 Cat C and Class 2 Cat D
- Degree of Protection: IP50
- Mounting Method: Surface wall mounting
- Configuration: Diverter
- Maximum continuous operating voltage: 300 L-E
- Maximum discharge current 8x20µs (Imax): 200 kA
- Nominal discharge current 8x20µs (In): 100 kA
- Dimensions (H x L x W): 360mm x 125mm x 280mm
- Weight: 7 kg
Key Features
- Three-phase connection
- 200 kA maximum discharge current
- 3 mode protection with alarm
- Common mode protection
- Surface wall mounting
- IP50 degree of protection
- Class 2 Cat C and Class 2 Cat D surge protection
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with safety standards and optimal device performance.
Applications
- Point of entry protection for electrical systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Protects electrical equipment from surge damage, reducing electronic waste
- Enhances system reliability and longevity, minimizing resource consumption
Warranty Information
Warranty details available upon request from Eaton; typically includes coverage against manufacturing defects.
Available Now
The Eaton 3 Phase Shunt Diverter 200kA 3 Mode Alarm Common Mode is available now for immediate purchase. Ideal for electrical system surge protection at point of entry.
