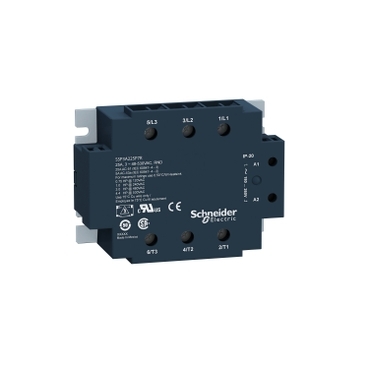

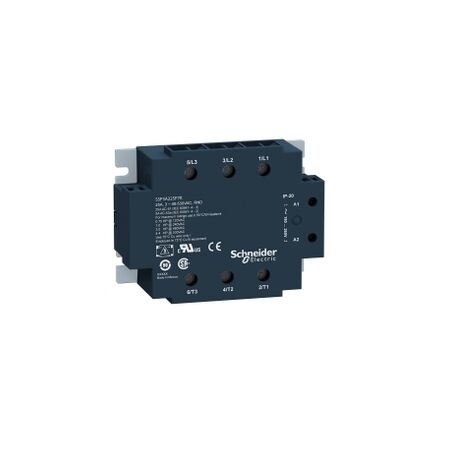

3 Phase Solid State Relay 530V | 25A Load Current | Zero-Cross Switching | DIN Rail Mountable | @Pack of 1 | by Clipsal
The 3 Phase Solid State Relay 530V is designed for reliable control of 3-phase loads, featuring a robust 25A load current and zero-cross switching for enhanced performance. Ideal for industrial automation and motor control applications, this compact DIN rail mountable relay ensures long operational life with minimal maintenance, making it perfect for HVAC systems and lighting control in commercial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3 Phase Solid State Relay 530V | 25A Load Current | Zero-Cross Switching | DIN Rail Mountable | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHSSP3A250P7RT
Alternatively Known As: 3 Phase SSR, Three Phase Solid State Relay, Industrial Solid State Relay, Clipsal SSR 530V, SCHSSP3A250P7RT
Technical Specifications
- Rated Voltage: 530V AC
- Phases: 3
- Control Voltage: 90-280V AC/DC
- Load Current: 25A per phase
- Switching Type: Zero-cross
- Mounting: DIN rail
- Operating Temperature: -30°C to +80°C
- Isolation Voltage: 4000V RMS
- Response Time: <20ms
- Dimensions (H x L x W): 90mm x 45mm x 105mm
- Weight: 0.5 kg
Key Features
- Solid state relay for 3-phase loads
- Rated for up to 530V AC
- Reliable switching with no moving parts
- Long operational life and low maintenance
- Fast response time for precise control
- Compact DIN rail mountable design
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Industrial automation systems
- Motor control centers
- HVAC equipment
- Pumps and compressors
- Lighting control in commercial and industrial environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Solid state design reduces mechanical wear and extends product lifespan
- Low power consumption during operation
- Minimizes electrical noise and emissions compared to electromechanical relays
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 3 Phase Solid State Relay 530V SCHSSP3A250P7RT is available for immediate purchase. Ideal for industrial automation, motor control, and commercial power switching applications.
