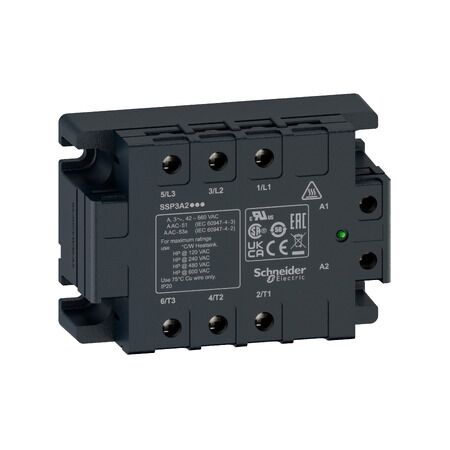

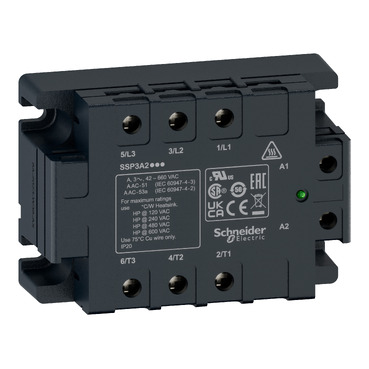

3 Phase Solid State Relay 530V | 25A Load Current | Zero-Cross Switching | High Durability | @Pack of 1 | by Clipsal
The 3 Phase Solid State Relay 530V is designed for reliable industrial automation, featuring a 25A load current and zero-cross switching for precise control. Ideal for HVAC systems and motor control panels, this solid state relay offers a long operational life with low maintenance requirements, making it perfect for demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3 Phase Solid State Relay 530V | 25A Load Current | Zero-Cross Switching | High Durability | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHSSP3A250BDRT
Alternatively Known As: 3 Phase SSR, Solid State Contactor, 3 Phase Solid State Switch, SCHSSP3A250BDRT Relay
Technical Specifications
- Rated Voltage: 530V AC
- Phases: 3
- Control Voltage: 4-32V DC
- Load Current: 25A per phase
- Switching Type: Zero-cross
- Isolation Voltage: 4000V RMS
- Operating Temperature: -30°C to +80°C
- Mounting: DIN rail
- Dimensions (H x L x W): 90mm x 110mm x 45mm
- Weight: 0.5 kg
Key Features
- Solid state relay for 3-phase applications
- Rated for up to 530V AC
- Reliable switching with no moving parts
- Long operational life and high durability
- Fast response time for precise control
- Low maintenance requirements
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations.
Applications
- Industrial automation systems
- HVAC equipment
- Motor control panels
- Heating elements
- Pumps and compressors
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- No arc or contact wear reduces electronic waste
- Energy-efficient operation with minimal heat generation
- Longer lifespan compared to electromechanical relays
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 3 Phase Solid State Relay 530V SCHSSP3A250BDRT is available for immediate purchase. Ideal for industrial automation, HVAC, and motor control applications.
