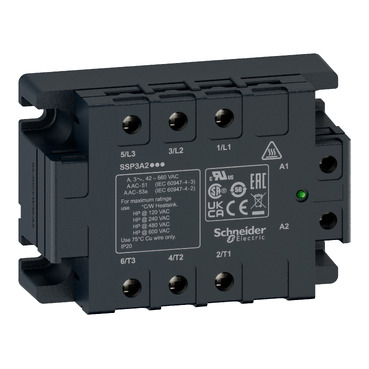

3 Phase Solid State Relay 530V | 25A Load Current | Zero-Cross Switching | LED Status Indicator | @Pack of 1 | by Clipsal
The 3 Phase Solid State Relay 530V is designed for reliable three-phase switching in industrial automation and HVAC applications. With a load current of 25A per phase and zero-cross switching technology, it ensures silent operation and longevity. Ideal for motor control panels and heating elements, this compact DIN rail mountable relay features an LED status indicator for easy diagnostics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3 Phase Solid State Relay 530V | 25A Load Current | Zero-Cross Switching | LED Status Indicator | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHSSP3A225BDRT
Alternatively Known As: 3 Phase SSR, Three Phase Solid State Relay, Industrial Solid State Relay, Clipsal SSR 530V, SCHSSP3A225BDRT
Technical Specifications
- Rated Voltage: 530V AC
- Phases: 3
- Control Voltage: 4-32V DC
- Load Current: 25A per phase
- Switching Type: Zero-cross
- Mounting: DIN rail
- Status Indicator: LED
- Operating Temperature: -30°C to +80°C
- Isolation Voltage: 4000V RMS
- Dimensions (H x L x W): 100mm x 45mm x 90mm
- Weight: 0.45 kg
Key Features
- Three-phase solid state relay for reliable switching
- Rated for up to 530V AC operation
- No moving parts for silent operation and long life
- Fast switching response
- Compact DIN rail mountable design
- LED status indicator for easy diagnostics
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local wiring rules and safety standards.
Applications
- Industrial automation systems
- HVAC equipment
- Motor control panels
- Heating elements
- Pumps and compressors
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Solid state design reduces mechanical wear and extends product lifespan
- Low power consumption during operation
- No arc or contact erosion, minimizing maintenance and waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
Available for immediate purchase. Ideal for industrial automation, HVAC, and motor control applications requiring reliable three-phase switching.
