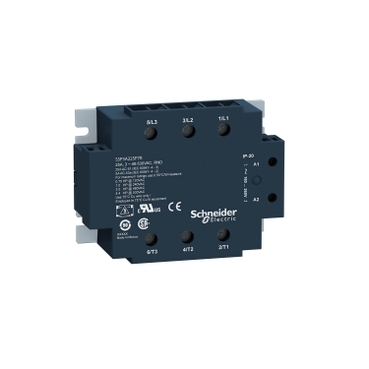

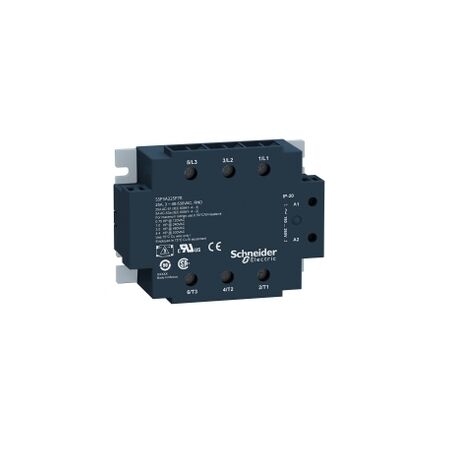

3 Phase Solid State Relay 530V | 25A Load Current | Zero-Crossing Switching | Compact DIN Rail Mount | @Pack of 1 | by Clipsal
The 3 Phase Solid State Relay 530V is designed for reliable control of 3-phase loads, featuring a 25A load current and zero-crossing switching for enhanced performance. Ideal for industrial automation and motor control applications, this compact DIN rail mountable relay ensures silent operation and long life with no moving parts, making it perfect for HVAC systems and lighting control in commercial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3 Phase Solid State Relay 530V | 25A Load Current | Zero-Crossing Switching | Compact DIN Rail Mount | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHSSP3A225B7
Alternatively Known As: 3 Phase SSR, Solid State Contactor, 3 Phase Power Relay, Industrial Solid State Relay, Clipsal SSR 530V
Technical Specifications
- Rated Voltage: 530V AC (3-phase)
- Control Voltage: 90-280V AC/DC
- Load Current: 25A per phase
- Switching Type: Zero-crossing
- Mounting: DIN rail
- Integrated heat sink
- Operating Temperature: -30°C to +80°C
- Dielectric Strength: 4000V RMS
- Response Time: <20ms
- Dimensions (H x L x W): 90mm x 45mm x 105mm
- Weight: 0.45 kg
Key Features
- Solid state relay for 3-phase loads
- Rated for up to 530V AC operation
- No moving parts for silent operation and long life
- Fast switching and high reliability
- Compact DIN rail mountable design
- Integrated heat sink for efficient thermal management
Professional Installation Requirements
- Installation must be performed by a licensed electrician familiar with 3-phase electrical systems and solid state relay integration.
Applications
- Industrial automation systems
- Motor control panels
- HVAC equipment
- Pumps and compressors
- Lighting control in commercial and industrial environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- No mechanical contacts, reducing maintenance and extending product life
- Energy-efficient operation with minimal heat generation
- Reduces electrical noise and arcing compared to electromechanical relays
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 3 Phase Solid State Relay 530V SCHSSP3A225B7 is available for immediate purchase. Ideal for industrial automation, motor control, and commercial power switching applications.
