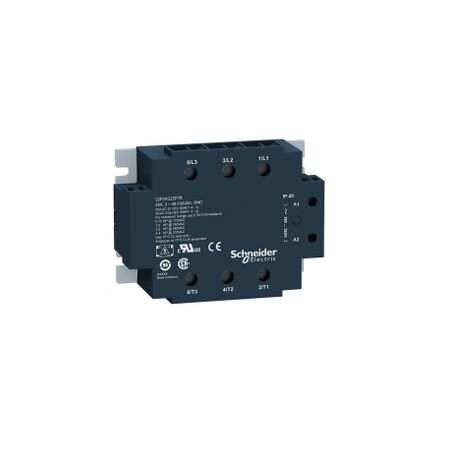

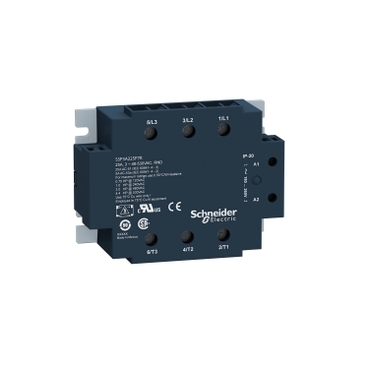

3 Phase Solid State Relay 530V | 25A Load Current | Zero-Crossing Switching | Compact DIN Rail Mount | @QTY of 1 | by Clipsal
The 3 Phase Solid State Relay 530V is designed for high reliability in industrial automation, featuring a 25A load current and zero-crossing switching for silent operation. Ideal for motor control panels and HVAC systems, this compact DIN rail mount relay includes an integrated heat sink for efficient thermal management, ensuring long service life and low power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3 Phase Solid State Relay 530V | 25A Load Current | Zero-Crossing Switching | Compact DIN Rail Mount | @QTY of 1 | by Clipsal
Brand: Clipsal
SKU: SCHSSP3A225BDR
Alternatively Known As: 3 Phase SSR, Three Phase Solid State Relay, Industrial Solid State Relay, Clipsal SSR 530V, SCHSSP3A225BDR
Technical Specifications
- Rated Voltage: 530V AC
- Number of Phases: 3
- Control Voltage: 4-32V DC
- Load Current: 25A per phase
- Switching Type: Zero-crossing
- Mounting: DIN rail
- Integrated heat sink
- Operating Temperature: -30°C to +80°C
- Dimensions (H x L x W): 90mm x 45mm x 105mm
- Weight: 0.45 kg
Key Features
- Three-phase solid state relay for high reliability switching
- Rated for up to 530V AC operation
- No moving parts for silent operation and long service life
- Fast switching response time
- Compact DIN rail mountable design
- Integrated heat sink for efficient thermal management
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Industrial automation systems
- Motor control panels
- HVAC equipment
- Pumps and compressors
- Lighting control in commercial and industrial environments
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Solid state design reduces mechanical wear and extends product lifespan
- Low power consumption during operation
- No arc emissions, reducing electrical noise and improving workplace safety
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 3 Phase Solid State Relay 530V SCHSSP3A225BDR is available for immediate purchase. Ideal for industrial automation, motor control, and HVAC applications.
