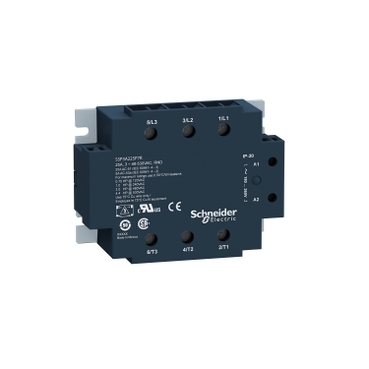

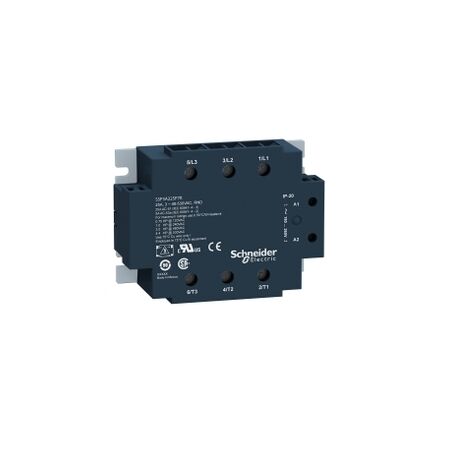

3 Phase Solid State Relay 530V | 25A Load Current | Zero-Crossing Switching | DIN Rail Mountable | @Pack of 1 | by Clipsal
The 3 Phase Solid State Relay 530V is designed for reliable switching in industrial automation systems, featuring a 25A load current and zero-crossing switching for enhanced performance. Ideal for HVAC equipment and motor control panels, this compact relay includes an integrated heat sink and LED status indicator for easy diagnostics, ensuring long service life and minimal maintenance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3 Phase Solid State Relay 530V | 25A Load Current | Zero-Crossing Switching | DIN Rail Mountable | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHSSP3A225B7R
Alternatively Known As: 3 Phase SSR, Solid State Contactor, 3 Phase Solid State Switch, Industrial Solid State Relay, Clipsal SSR 530V
Technical Specifications
- Rated Voltage: 530V AC
- Number of Phases: 3
- Control Voltage: 90-280V AC/DC
- Load Current: 25A per phase
- Switching Type: Zero-crossing
- Mounting: DIN rail
- Integrated heat sink
- LED status indicator
- Operating Temperature: -30°C to +80°C
- Dimensions (H x L x W): 90mm x 45mm x 105mm
- Weight: 0.45 kg
Key Features
- Three-phase solid state relay for reliable switching
- Rated for up to 530V AC operation
- No moving parts for silent operation and long service life
- Fast switching response
- Compact DIN rail mountable design
- LED status indicator for easy diagnostics
- Integrated heat sink for efficient thermal management
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Industrial automation systems
- HVAC equipment
- Motor control panels
- Heating elements
- Pumps and compressors
- Lighting control in commercial and industrial environments
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Solid state design reduces mechanical wear and extends product lifespan
- Low power consumption during operation
- No arc or contact erosion, minimizing maintenance and waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 3 Phase Solid State Relay 530V SCHSSP3A225B7R is available for immediate purchase. Ideal for industrial automation, motor control, and commercial electrical systems.
