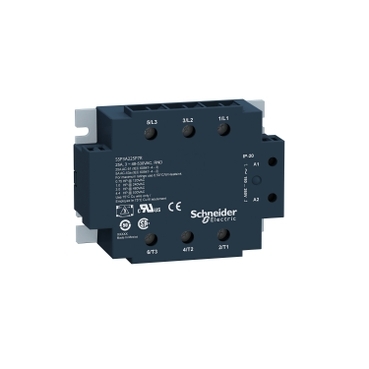

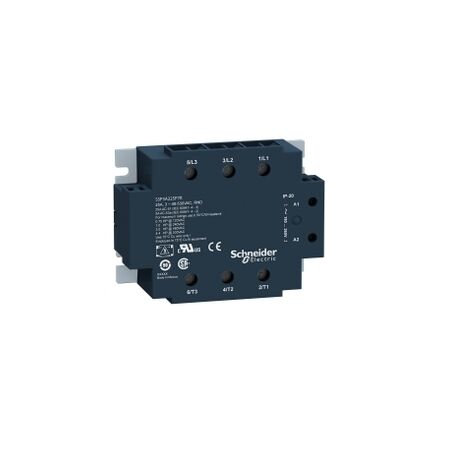

3 Phase Solid State Relay 530V | 25A Load Current | Zero-Crossing Switching | Compact DIN Rail Mount | @Pack of 1 | by Clipsal
The 3 Phase Solid State Relay 530V is designed for reliable control of industrial automation systems, featuring a 25A load current and zero-crossing switching for enhanced performance. Ideal for HVAC equipment and motor control panels, this compact relay ensures silent operation and high switching reliability, making it perfect for commercial electrical systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3 Phase Solid State Relay 530V | 25A Load Current | Zero-Crossing Switching | Compact DIN Rail Mount | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHSSP3A250P7R
Alternatively Known As: 3 Phase SSR, Three Phase Solid State Relay, Clipsal SSR 530V, SCHSSP3A250P7R, Industrial Solid State Relay
Technical Specifications
- Rated Voltage: 530V AC (maximum)
- Number of Phases: 3
- Control Voltage: 90-280V AC/DC
- Load Current: 25A per phase
- Switching Type: Zero-crossing
- Mounting: DIN rail
- Integrated heat sink
- Operating Temperature: -30°C to +80°C
- Insulation Voltage: 4000V RMS
- Response Time: <20ms
- Dimensions (H x L x W): 90mm x 45mm x 105mm
- Weight: 0.45 kg
Key Features
- Solid state relay for 3-phase loads
- Rated for up to 530V AC
- High switching reliability and long operational life
- No moving parts, silent operation
- Fast switching response
- Compact DIN rail mountable design
- Integrated heat sink for efficient thermal management
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Industrial automation systems
- HVAC equipment
- Motor control panels
- Pumps and compressors
- Lighting control in commercial and industrial environments
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Solid state design reduces mechanical wear and extends product lifespan
- Low power consumption during operation
- No arc or contact erosion, minimizing maintenance and waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 3 Phase Solid State Relay 530V SCHSSP3A250P7R is available for immediate purchase. Ideal for industrial automation, motor control, and commercial electrical systems.
