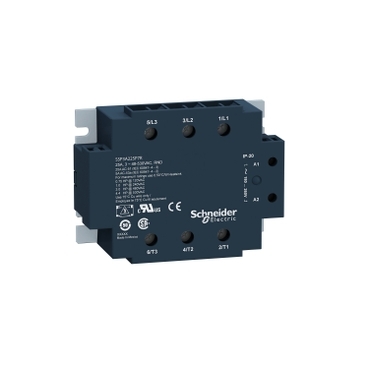

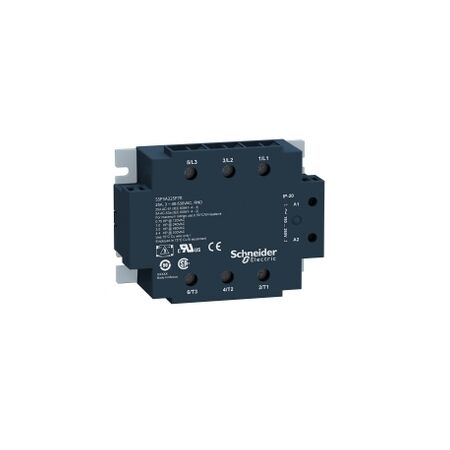

3 Phase Solid State Relay 530V | 50A Load Current | Zero-Crossing Switching | by Clipsal
The 3 Phase Solid State Relay 530V is designed for reliable control of 3-phase loads, featuring a robust 50A load current and zero-crossing switching for enhanced performance. Ideal for industrial automation, HVAC systems, and motor control panels, this relay ensures long operational life with minimal maintenance, making it a perfect choice for demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3 Phase Solid State Relay 530V | 50A Load Current | Zero-Crossing Switching | by Clipsal
Brand: Clipsal
SKU: SCHSSP3A250F7T
Alternatively Known As: 3 Phase SSR, Solid State Contactor, 3 Phase Solid State Switch, SCHSSP3A250F7T Relay
Technical Specifications
- Rated Voltage: 530V AC
- Number of Phases: 3
- Control Voltage: 90-280V AC/DC
- Load Current: 50A per phase
- Switching Type: Zero-crossing
- Isolation Voltage: 4000V RMS
- Operating Temperature: -30°C to +80°C
- Mounting: DIN rail or panel mount
- Dimensions (H x L x W): 90mm x 45mm x 105mm
- Weight: 0.45 kg
Key Features
- Solid state relay for 3-phase loads
- Rated for up to 530V AC
- Reliable switching with no moving parts
- Long operational life and low maintenance
- Fast response time for precise control
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Industrial automation systems
- HVAC equipment
- Motor control panels
- Heating elements
- Pumps and compressors
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- No arc or contact wear, reducing hazardous emissions
- Energy-efficient operation with minimal heat generation
- Longer lifespan reduces electronic waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 3 Phase Solid State Relay 530V SCHSSP3A250F7T is available for immediate purchase. Ideal for industrial automation, motor control, and HVAC applications.
