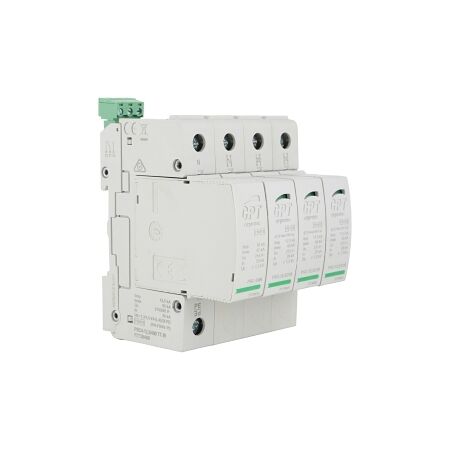

3 Phase Surge Protection Device | 12.5kA Iimp | 65kA Imax | 400VAC by NHP
3 phase surge protection device with 12.5kA nominal and 65kA max discharge current—ideal for industrial and commercial electrical installations. Built for robust protection, with IP20 rating and DIN rail mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cirprotec PSC SPD 1 and 2 3 Phase L-L and L-N and N-PE Iimp 12.5kA Imax 65kA 400VAC
Brand: NHP
SKU: CPTPSC412400IR
Alternatively Known As: Surge Protection Device, SPD, Power Surge Protector
Technical Specifications
- Nominal Discharge Surge Current (8/20): 12.5 kA
- Max Discharge Surge Current (8/20): 65 kA
- Protection Class: I, II
- Nominal Voltage AC: 400 V
- Max Continuous Voltage AC: 275 V
- Voltage Protection Level: 1.3 kV
- Mounting Method: DIN rail (top hat rail) 35 mm
- Construction Size: 4 modular spacing
- Degree of Protection: IP20
- Dimensions (H x L x W): 90mm x 100mm x 70mm
- Weight: 1.0 kg
Key Features
- Surge protection for L-L, L-N, and N-PE configurations.
- Nominal discharge surge current of 12.5 kA.
- Maximum discharge surge current of 65 kA.
- IP20 rated for indoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power supply systems
- Commercial: Electrical installations requiring surge protection
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Protects electrical systems from damage, reducing waste and prolonging equipment lifespan.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Cirprotec PSC SPD 1 and 2 3 Phase Surge Protection Device is available now for immediate purchase. Ideal for industrial and commercial electrical installations.
