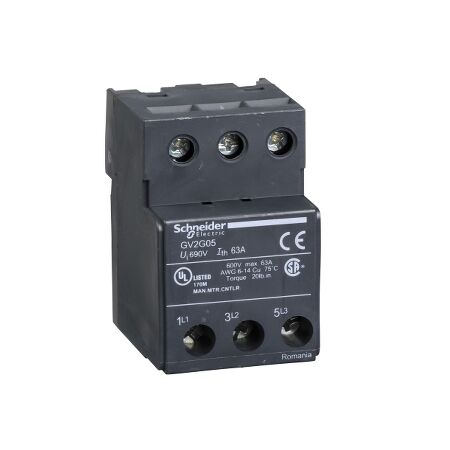

TeSys D, TeSys Deca & TeSys U Terminal Block, 3P, for GV1L3

3 Phase Terminal Block 63A/690V | DIN Rail Mount | Screw Connectors by Clipsal

BRAND: Clipsal

SKU: GV2G05

$112.00 List price: $139.50

+ −

30 Days Return Delivery Options

3 phase terminal block with 63A/690V capacity and DIN rail mounting—ideal for industrial applications. Built for secure electrical connections, with screw connectors for reliable cable attachment.

Description
Attachments

Product Name/Title: TeSys D, TeSys Deca & TeSys U Terminal Block, 3P, for GV1L3

Brand: Clipsal

SKU: GV2G05

Alternatively Known As: 3 Phase Terminal Block, Industrial Terminal Block, DIN Rail Terminal Block

Technical Specifications

Rated operational current: 63A
Rated insulation voltage: 690V conforming to IEC 60947-1
IP degree of protection: IP20 conforming to IEC 60529
Screw clamp terminals for various cable sizes.
Dimensions (H x L x W): 55mm x 70mm x 60mm
Weight: 0.115 kg

Key Features

3 phases, 63A/690V capacity.
Designed for mounting on DIN rail.
Screw connectors for secure supply cable connection.
Compatible with current limiter GV1L3 for parallel motor starters.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Suitable for use in various industrial applications requiring reliable electrical connections.

Standards & Compliance

Complies with relevant Australian standards for electrical safety.

Environmental Benefits

Green Premium compliant (RoHS/REACh) for reduced environmental impact.

Warranty Information

18 months warranty against manufacturing defects.

Available Now

The TeSys D, TeSys Deca & TeSys U Terminal Block is available now for immediate purchase. Ideal for industrial applications requiring reliable electrical connections.

GV2G05 (GV2G05, 248 Kb) [Download]
