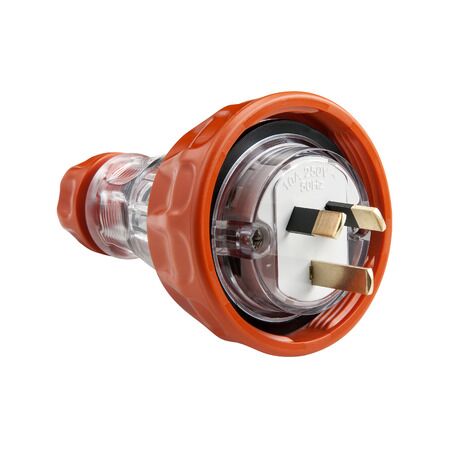

3 Pin Plug 10A 250V | IP66 Rated | Polycarbonate Housing by Clipsal

BRAND: Clipsal
SKU: EY56P310
$17.30 List price: $25.90
+ −
30 Days Return Delivery Options
3 pin plug with 10A and 250V rating—ideal for small commercial and industrial applications. Built for durability, with IP66 protection and polycarbonate housing for reliable connections.

Product Name/Title: Easy56, Plug, 3 Pin, 10A, 250V

Brand: Clipsal

SKU: EY56P310

Alternatively Known As: Easy56 Plug, 3 Pin Plug, Clipsal Plug

Technical Specifications
  • Rated current: 10A
  • Rated operational voltage: 250V
  • Screw terminal connections
  • Cable outer diameter: 6.8 to 10.6 mm
  • Wire stripping length: 12 to 34 mm
  • Cable entry: cable gland
  • Material: Polycarbonate housing, Brass pins
  • Ambient air temperature for operation: -25 to 75 °C
  • Network frequency: 50 Hz
  • Cable cross section: 0.75 to 1 mm²
  • Thread type: M20
  • Dimensions (H x L x W): 67mm x 112.5mm x 67mm
  • Weight: 0.107 kg
Key Features
  • 3-pin design for reliable connections.
  • Rated for 10A and 250V.
  • IP66 rated for protection against dust and water.
Professional Installation Requirements
  • Professional installation is recommended for optimal safety.
Applications
  • Small commercial
  • Utility
  • Industry
Standards & Compliance
  • Complies with AS/NZS 3112 and AS 60529 for safety and performance.
Environmental Benefits
  • Compliant with RoHS directives, reducing harmful substances.
Warranty Information

Standard warranty applies.

Available Now

The Clipsal Easy56 Plug, 3 Pin, 10A, 250V is available now for immediate purchase. Ideal for small commercial and industrial applications.

EY56P310 (EY56P310, 221 Kb) [Download]
