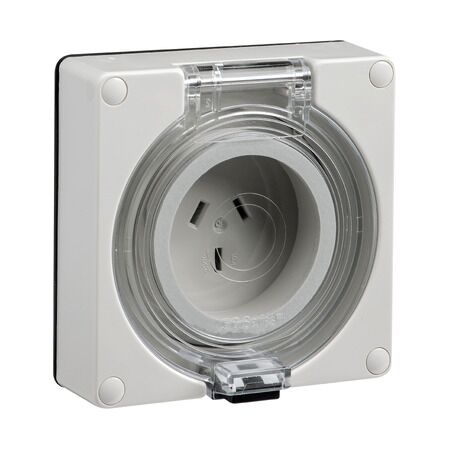

3 Pin Socket 10A 250V | Surface Mounted | IP66 Rated by Clipsal
3 pin socket with 10A current and 250V voltage—ideal for small commercial and industrial use. Built for durability, with surface mounted design and IP66 protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Easy56, Socket, 3 Pin, 10A, 250V, Less Enclosure
Brand: Clipsal
SKU: EY56SO310LE
Alternatively Known As: Easy56 Socket, Clipsal Socket, 3 Pin Socket, 10A Socket
Technical Specifications
- Rated current: 10A
- Rated operational voltage: 250V
- Mounting mode: Surface mounted
- Connections: Screw terminals for 1.5-6 mm² cable
- Wire stripping length: 10 mm
- IP Rating: IP66
- Ambient temperature for operation: -25 to 75 °C
- Material: Polycarbonate cover, phosphor bronze pins
- Dimensions (H x L x W): 101mm x 65mm x 101mm
- Weight: 0.216 kg
Key Features
- Surface mounted design
- 10A rated current
- 250V operational voltage
- Screw terminals for 1.5-6 mm² rigid or stranded cable
- IP66 rated for protection against dust and water
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended.
Applications
- Small commercial
- Industry
- Utility
Standards & Compliance
- Complies with AS/NZS 3112 and AS 60529 for safety and performance.
Environmental Benefits
- Compliant with RoHS directives and environmental regulations.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal Easy56 Socket 3 Pin 10A 250V is available now for immediate purchase. Ideal for small commercial and industrial applications.
