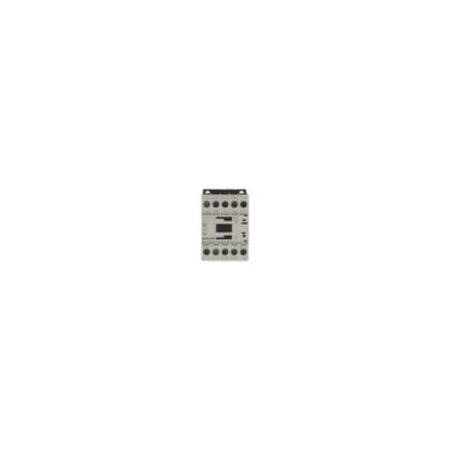

3 Pole AC Contactor | 110V 50Hz & 120V 60Hz | 22A Rated Current | 3 kW Power | Eaton
This 3 pole AC contactor operates at 110V 50Hz and 120V 60Hz, with a rated current of 22A and a power capacity of 3 kW—ideal for motor control and industrial automation. Built for efficiency and longevity, it features a high mechanical lifespan of 10 million operations and secure screw terminal connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3 Pole AC Contactor | 110V 50Hz & 120V 60Hz | 22A Rated Current | 3 kW Power | Eaton
Brand: Eaton
SKU: Y7-276547
Alternatively Known As: Eaton DILM7-10 Contactor, Moeller DILM7-10 Motor Contactor, 3 Pole AC Contactor, 110V 50Hz Contactor, 120V 60Hz Contactor
Technical Specifications
- 3 pole contactor with 1 normally open contact
- Rated operational power: 3 kW at 380-400 V AC
- Rated operational current: 22 A at AC-1, 7 A at AC-3
- Rated control supply voltage: 110 V AC at 50 Hz, 120 V AC at 60 Hz
- Mechanical lifespan: 10,000,000 operations
- Operating temperature range: -25 °C to 60 °C
- Protection: Finger and back-of-hand proof according to EN 50274
- Rated impulse withstand voltage: 8000 V AC
- Terminal capacity: Flexible 0.75 - 2.5 mm², Solid 0.75 - 4 mm²
- Screw terminals with M3.5 screws, tightening torque 1.2 Nm
- Power consumption pick-up: 24 VA at 50 Hz, 30 VA at 60 Hz
- Rated insulation voltage: 690 V
- Short-circuit current rating: up to 45 A with appropriate fusing
- Dimensions (H x L x W): 68mm x 75mm x 45mm
- Weight: 0.24 kg
Key Features
- 3 pole contactor suitable for 380-400 V AC operation
- Rated operational power up to 3 kW at 400 V AC
- Single normally open (N/O) contact
- Screw terminal connections for secure wiring
- High mechanical lifespan of 10,000,000 operations
- Protection against direct contact when actuated from front
- Rated impulse withstand voltage of 8000 V AC
- Suitable for motors with efficiency class IE3
- Dual-frequency coil operation at 110 V 50 Hz and 120 V 60 Hz
- Rated operational current up to 22 A at AC-1 category
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper connection.
Applications
- Motor control and switching applications
- Industrial automation systems
- AC induction motor starting and stopping
- Non-inductive or slightly inductive load switching
- Plugging, reversing, and inching of motors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed for efficient motor control reducing energy waste
- Long mechanical lifespan reduces replacement frequency and waste
Warranty Information
Standard Eaton warranty applies; typically 1-2 years against manufacturing defects.
Available Now
The Eaton Moeller DILM7-10 Contactor is available for immediate purchase, ideal for industrial motor control and automation applications.
