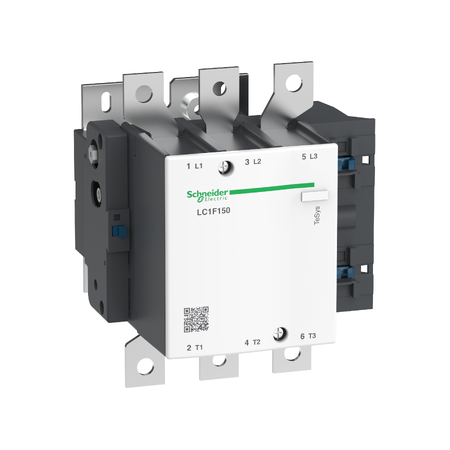

3 Pole AC3 Contactor | 150A Rated Current | 110V Coil Voltage | by Clipsal
The 3 Pole AC3 Contactor is designed for industrial motor control, featuring a robust 150A rated operational current and a 110V AC coil voltage. Ideal for applications such as HVAC systems and manufacturing automation, this contactor ensures high electrical and mechanical endurance, making it a reliable choice for direct-on-line motor starting and efficient energy management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3 Pole AC3 Contactor | 150A Rated Current | 110V Coil Voltage | by Clipsal
Brand: Clipsal
SKU: SCHLC1F150F7
Alternatively Known As: Schneider LC1F150F7, TeSys F Series Contactor, 3 Pole AC Contactor, 150A Motor Contactor, Industrial Contactor
Technical Specifications
- Rated operational current (AC3): 150A
- Number of poles: 3
- Coil voltage: 110V AC 50/60Hz
- Rated insulation voltage: 1000V
- Conventional thermal current: 250A
- Electrical durability: 1 million operations (AC3)
- Mechanical durability: 10 million operations
- Mounting: Panel
- Auxiliary contacts: 1 NO + 1 NC (standard)
- Standards: IEC 60947-4-1, EN 60947-4-1
- Dimensions (H x L x W): 205mm x 170mm x 140mm
- Weight: 5.5 kg
Key Features
- 3 pole contactor for AC3 applications
- Rated operational current: 150A (AC3)
- Coil voltage: 110V AC 50/60Hz
- Robust and reliable TeSys F series design
- Suitable for direct-on-line motor starting
- High electrical and mechanical endurance
- Easy installation and maintenance
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Industrial motor control
- Pumping stations
- HVAC systems
- Lighting control panels
- Manufacturing automation
- Power distribution boards
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient motor control, reducing energy waste
- Durable design minimizes replacement frequency and electronic waste
- Supports automation for optimized energy management
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal TeSys LC1F150F7 3 Pole AC3 Contactor is available for immediate purchase. Ideal for industrial motor control and automation applications.
