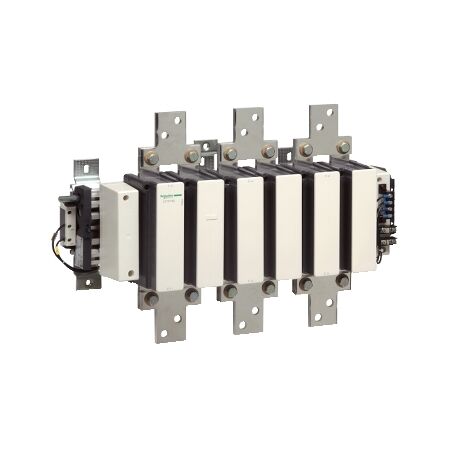

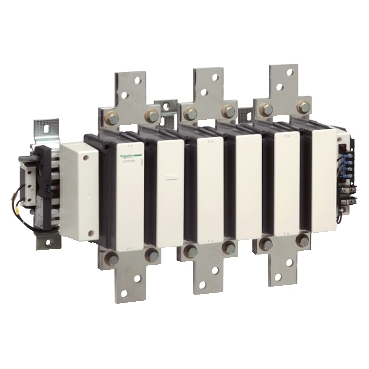

3-Pole AC3 Contactor | 780A Rated Current | 110V Coil Voltage | by Clipsal
The 3-Pole AC3 Contactor is designed for industrial motor control, featuring a robust 780A rated operational current at 440V and a 110V AC coil voltage. Ideal for heavy machinery switching and HVAC systems, this contactor ensures reliable performance in demanding environments, making it a perfect choice for power distribution panels and pumping stations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3-Pole AC3 Contactor | 780A Rated Current | 110V Coil Voltage | by Clipsal
Brand: Clipsal
SKU: SCHLC1F780F7
Alternatively Known As: LC1F780F7, TeSys F Contactor, Schneider LC1F780F7, 3 Pole AC3 Contactor, Industrial Power Contactor
Technical Specifications
- Type: 3-pole contactor (3NO)
- Rated operational current: 780A (AC-3, 440V)
- Coil voltage: 110V AC 50/60Hz
- Utilization category: AC-3
- Rated insulation voltage: 1000V
- Conforms to IEC 60947-4-1
- Mechanical durability: 5 million cycles
- Electrical durability: 1 million cycles (AC-3)
- Mounting: Panel mounting
- Auxiliary contacts: Optional
- Dimensions (H x L x W): 340mm x 260mm x 320mm
- Weight: 15 kg
Key Features
- High power 3-pole contactor for AC-3 applications
- Rated operational current up to 780A at 440V
- 110V AC coil voltage
- Robust TeSys F series design for demanding environments
- 3 normally open (3NO) contacts
- Suitable for direct-on-line motor starting
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Industrial motor control
- Pumping stations
- HVAC systems
- Heavy machinery switching
- Power distribution panels
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear.
Environmental Benefits
- Enables efficient and reliable switching, reducing energy losses in industrial systems.
- Long operational life reduces replacement frequency and associated waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal TeSys LC1F780F7 3P AC3 Contactor is available for immediate purchase. Ideal for industrial motor control and heavy-duty power switching applications.
