Trade Discount 25%
3-Pole Changeover Switch 100A | IP20 Rated | DIN Rail Mount by NHP
3-pole changeover switch with 100A rated current and IP20 protection—ideal for industrial and commercial power distribution. Built for durability, with DIN rail mount for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

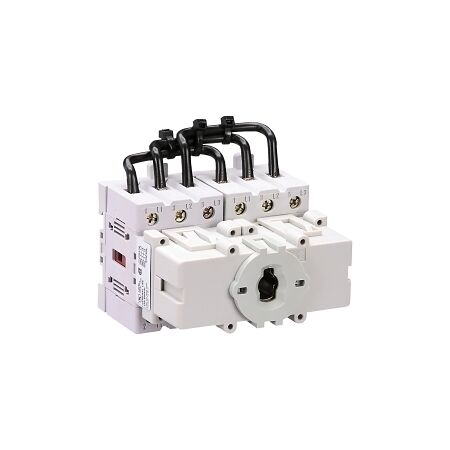

Product Name/Title: Sprecher and Schuh L7 Switch Body 3 Pole Changeover 100A Base Mount
Brand: NHP
SKU: LA71003753
Alternatively Known As: L7 Changeover Switch, 3 Pole Switch, 100A Switch
Technical Specifications
- Rated operation power at AC 3 400 V: 37 kW
- Rated operation current at AC 21A 690 V: 100 A
- Rated operation current at AC 1 690 V: 100 A
- Thermal current (enclosed): 100 A
- Thermal current (open): 120 A
- Mounting method: DIN rail
- Material housing: Plastic
- Wire conductor size (rigid cable): 4-35 mm²
- Wire conductor size (flex cable): 4-50 mm²
- Mechanical life service cycles: 200,000 cycles
- Number of switch positions: 3
- Operating temperature: -25 to 60 °C
- Dimensions (H x L x W): 90mm x 89mm x 72mm
- Weight: 1.5 kg
Key Features
- 3-pole changeover switch with a rated operation current of 100A.
- IP20 rated for protection against solid objects.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and control systems
- Commercial: Switchgear applications in various settings
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh L7 Switch Body 3 Pole Changeover 100A Base Mount is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
Non-Returnable & Non-Cancellable
