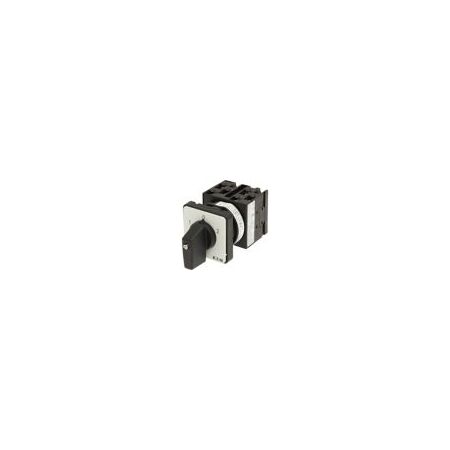

3-Pole Changeover Switch | 20 A Rated Current | IP65 Protection | Flush Mount by Eaton
This 3-pole changeover switch features a 20 A rated current and IP65 protection, making it ideal for motor disconnect applications in industrial settings. Built for reliable performance with a high mechanical lifespan of 400,000 operations, it ensures safe and efficient control in electrical systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3-Pole Changeover Switch | 20 A Rated Current | IP65 Protection | Flush Mount by Eaton
Brand: Eaton
SKU: Y7-29353
Alternatively Known As: Eaton T0 Changeover Switch, Eaton Moeller T0 Switch, 3-Pole Changeover Switch, Motor Disconnect Switch, Flush Mount Changeover Switch
Technical Specifications
- Rated current: 20 A
- Number of poles: 3
- Switching angle: 60°
- Contact units: 3
- Rated operational voltage (Ue): up to 690 V AC
- Rated breaking capacity: 100 A at 220/230 V, 110 A at 400/415 V
- Mechanical lifespan: 400,000 operations
- Degree of protection: NEMA 1, NEMA 12, IP65 (front side)
- Operating temperature: -25 °C to 50 °C
- Shock resistance: 15 g mechanical
- Terminal capacity: 1 x (1 - 2.5) mm² solid, 2 x (0.75 - 2.5) mm² flexible with ferrule
- Tightening torque: 1 Nm
- Rated impulse withstand voltage (Uimp): 6000 V AC
- Safe isolation: 440 V AC between contacts
- Dimensions (H x L x W): 48mm x 95mm x 48mm
- Weight: 0.121 kg
Key Features
- 20 A rated current with 3 contact units
- Flush mounting design with short thumb-grip actuator
- Maintained switch with 0 (Off) position and 1-0-2 inscription
- High mechanical lifespan of 400,000 operations
- Degree of protection: NEMA 1, NEMA 12, IP65 front side
- Rated impulse withstand voltage of 6000 V AC
- Suitable for switching and control in industrial environments
- Shock resistance of 15 g according to IEC/EN 60068-2-27
- Rated operational voltage up to 690 V AC
- Rated breaking capacity up to 110 A depending on voltage
- Safe isolation of 440 V AC between contacts per EN 61140
- Operating temperature range from -25 °C to 50 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration into control panels.
Applications
- Branch circuits
- Motor disconnect applications
- Front mounting in control panels
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- High operational efficiency supports energy-saving motor control
Warranty Information
Warranty details available upon request from Eaton; typically includes coverage against manufacturing defects.
Available Now
The Eaton Moeller® series T0 Changeover Switch is available for immediate purchase, ideal for industrial and commercial electrical control applications.
