3-Pole Changeover Switch 32A | 11kW at 400V AC | IP20 Rated by NHP
3-pole changeover switch with 32A rating and 11kW power at 400V AC—ideal for industrial and commercial power distribution. Built for reliable operation, with IP20 protection and durable design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

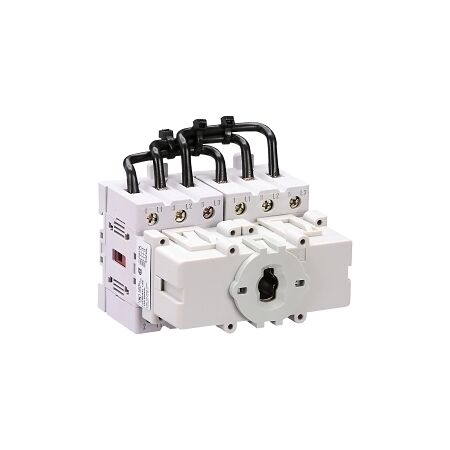

Product Name/Title: Sprecher and Schuh L7 Switch Body 3 Pole Changeover 32A Base Mount
Brand: NHP
SKU: LA7323753
Alternatively Known As: L7 Loadbreak Switch, Changeover Switch, 3 Pole Switch
Technical Specifications
- Number of Poles: 3
- Rated Operation Power at AC 3 400 V: 11 kW
- Rated Operation Current IE at AC 21A 690 V: 32 A
- Rated Operation Current IE at AC 1 690 V: 32 A
- Ithe Thermal Current Enclosed: 40 A
- Ith Thermal Current Open: 50 A
- Mounting Method: DIN rail
- Material Housing: Plastic
- Wire Conductor Size Rigid Cable: 1.5-10 mm²
- Wire Conductor Size Flex Cable: 1.5-16 mm²
- Degree of Protection IP Front Side: IP20
- With Zero Off Position: Yes
- Mechanical Life Service Cycles: 200000 cycles
- Number of Switch Positions: 3
- Operating Temperature: -25-60 °C
- Dimensions (H x L x W): 63mm x 59mm x 45mm
- Weight: 1.5 kg
Key Features
- 3-pole changeover switch for reliable operation.
- Rated for 32A and 11 kW at 400V AC.
- IP20 rated for protection against solid objects.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and control systems
- Commercial: Equipment switching and load management
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh L7 Switch Body 3 Pole Changeover 32A Base Mount is available now for immediate purchase. Ideal for industrial and commercial applications.
