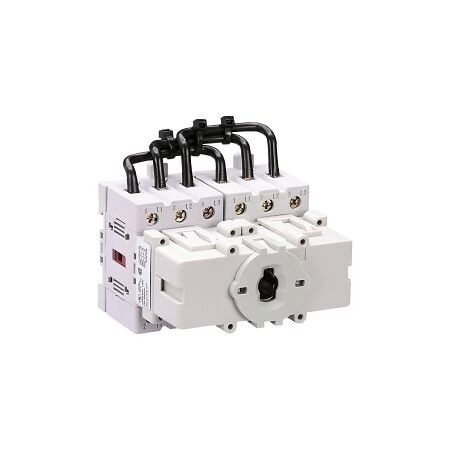

3 Pole Changeover Switch 40A | IP20 Rated | DIN Rail Mount by NHP

BRAND: NHP
SKU: LA7403753
$408.80 List price: $542.90
+ −
30 Days Return Delivery Options
3 pole changeover switch with 40A rated current and IP20 protection—ideal for industrial and commercial power distribution. Built for durability, with DIN rail mount for easy installation.

Product Name/Title: Sprecher and Schuh L7 Switch Body 3 Pole Changeover 40A Base Mount

Brand: NHP

SKU: LA7403753

Alternatively Known As: L7 Changeover Switch, 3 Pole Switch, 40A Switch

Technical Specifications
  • Number of Poles: 3
  • Rated Operation Power at AC 3 400 V: 15 kW
  • Rated Operation Current IE at AC 21A 690 V: 40 A
  • Rated Operation Current IE at AC 1 690 V: 40 A
  • Ithe Thermal Current Enclosed: 50 A
  • Ith Thermal Current Open: 63 A
  • Mounting Method: DIN rail
  • Material Housing: Plastic
  • Wire Conductor Size Rigid Cable: 2.5-16 mm²
  • Wire Conductor Size Flex Cable: 2.5-25 mm²
  • Degree of Protection IP Front Side: IP20
  • With Zero Off Position: Yes
  • Mechanical Life Service Cycles: 200000 cycles
  • Number of Switch Positions: 3
  • Operating Temperature: -25-60 °C
  • Dimensions (H x L x W): 72mm x 73mm x 54mm
  • Weight: 1.5 kg
Key Features
  • 3-pole changeover switch with a rated operation current of 40A.
  • IP20 rated for protection against solid objects.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution and control systems
  • Commercial: Equipment switching and load management
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
  • Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Sprecher and Schuh L7 Switch Body 3 Pole Changeover 40A Base Mount is available now for immediate purchase. Ideal for industrial and commercial applications.

Non-Returnable & Non-Cancellable

LA7403753-AU-L7-Changeover-Switch-3P-Datasheet.pdf (LA7403753-AU-L7-Changeover-Switch-3P-Datasheet.pdf, 563 Kb) [Download]
