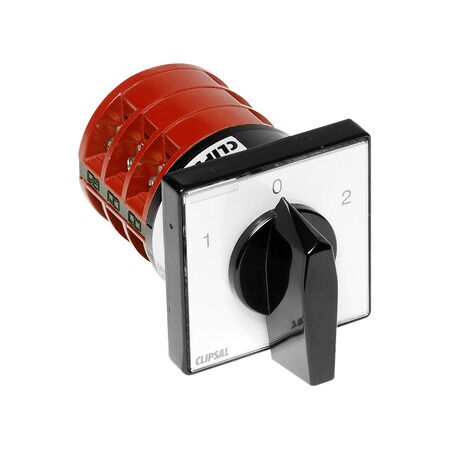

3 Pole Changeover Switch | 415 V AC | 32 A | 15 kW by Clipsal
3 pole changeover switch with 415 V AC and 32 A current—ideal for industrial applications. Built for reliable switching, with a 15 kW operational power and screw terminals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 7 Series Cam Switches, Changeover Switch, 3 Pole, with Off Marked 1-O-2
Brand: Clipsal
SKU: 7GN32/53/U
Alternatively Known As: 3 Pole Changeover Switch, Industrial Changeover Switch, Clipsal Switch
Technical Specifications
- Switch function: 3-way
- Connector type: screw terminals
- Number of poles: 3
- Rated supply voltage: 415 V AC
- Number of contacts: 3
- Conventional free air thermal current: 32 A
- Rated operational power: 15 kW
- Switching angle: 60°
- Fuse type: 10-10 kA, gG10-10 kA, gL
- Maximum short-circuit current: 40 A
- Dimensions (H x L x W): 74mm x 145mm x 76mm
- Weight: 0.287 kg
Key Features
- 3-way switch function with screw terminals.
- Rated supply voltage of 415 V AC.
- Conventional free air thermal current of 32 A.
- Rated operational power of 15 kW.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Suitable for various industrial applications requiring reliable switching.
Standards & Compliance
- Compliant with relevant Australian standards for electrical safety.
Environmental Benefits
- Compliant with RoHS directives and mercury-free.
Warranty Information
Standard warranty as per manufacturer guidelines.
Available Now
The Clipsal 7 Series Changeover Switch is available now for immediate purchase. Ideal for industrial applications requiring reliable switching.
