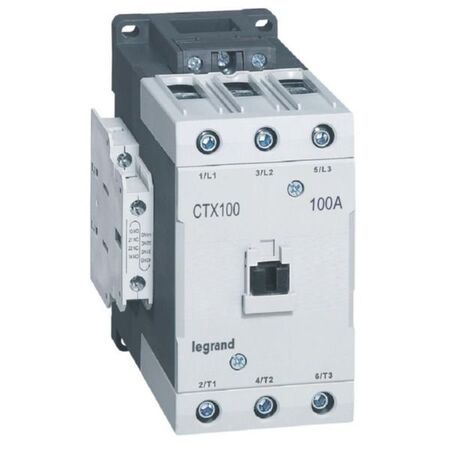

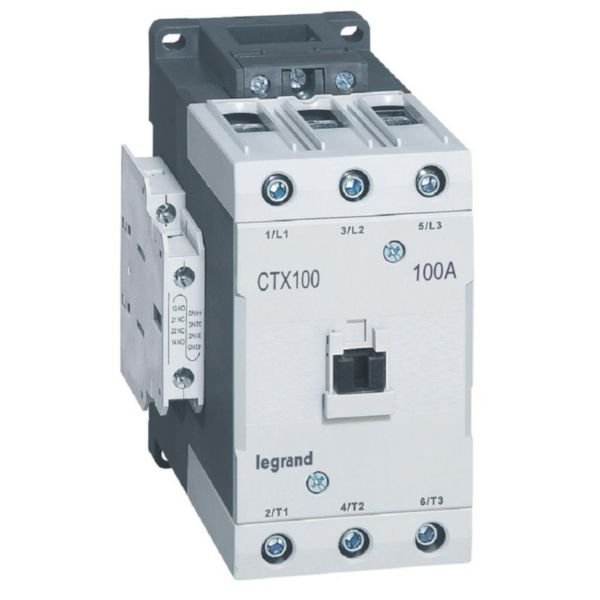

3-Pole Contactor 100A AC-3 Rating | Modular Design | Screw Connection | @Each of 1 | by Legrand

BRAND: Legrand
SKU: 416236
$713.90 List price: $889.60
+ −
30 Days Return Delivery Options
The 3-pole contactor with a 100A AC-3 rating is perfect for switching 3-phase motors up to 55 kW at 415V. Designed for industrial and tertiary applications, it features a modular design for easy DIN rail mounting and screw connections for reliable performance. With 2NO + 2NC auxiliary contacts and an endurance of up to 12 million mechanical operations, this contactor ensures long-lasting reliability and compliance with safety standards.

Product Name/Title: 3-Pole Contactor 100A AC-3 Rating | Modular Design | Screw Connection | @Each of 1 | by Legrand

Brand: Legrand

SKU: 416236

Alternatively Known As: 3-pole motor contactor, 100A contactor, Legrand CTX3 contactor, industrial motor starter, modular contactor

Technical Specifications
  • Rated operation current Ie at AC-3, 400 V: 105 A
  • Rated operation power at AC-3, 400 V: 55 kW
  • Rated operation current Ie at AC-1, 400 V: 160 A
  • Rated operation current Ie at AC-4, 400 V: 75 A
  • Rated operation power at AC-4, 400 V: 37 kW
  • Rated control supply voltage AC 50/60 Hz: 195.5-253 V
  • Number of normally open main contacts: 3
  • Number of normally closed main contacts: 0
  • Number of auxiliary contacts NO: 2
  • Number of auxiliary contacts NC: 2
  • Type of electrical connection: Screw connection
  • Suitable for mounting on 35 mm DIN rail (IEC 60715) or mounting plate
  • Dimensions (H x L x W): 90mm x 70mm x 45mm
  • Weight: 1.2 kg
Key Features
  • 100A AC-3 rating for switching 3-phase motors up to 55 kW at 415V
  • 2NO + 2NC auxiliary contacts with NC mirror contact per IEC 60947-4-1
  • Modular compact design for 35 mm DIN rail mounting
  • Screw connection for main circuit
  • Endurance up to 12 million mechanical and 2 million electrical operations
  • Coil supply possible on top or bottom side
  • Removable front cover for visual inspection of arc chambers and contacts
  • Can be equipped with all Legrand CTX3 auxiliaries and accessories
  • Number of operation cycles (AC-3) per hour: 1800
  • Complies with substance-restriction requirements and environmentally conscious design
Professional Installation Requirements
  • Installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper operation.
Applications
  • Tertiary and industrial installations
  • Switching of 3-phase motors up to 55 kW (415V)
  • Switching of inductive and non-inductive loads
  • Suitable for distribution boards
Standards & Compliance
  • Complies with AS/NZS 60947-4-1 for low-voltage switchgear and controlgear - Contactors and motor-starters
Environmental Benefits
  • Designed with substance-restriction compliance for reduced environmental impact
  • Eco-friendly manufacturing process
Warranty Information

Standard Legrand warranty applies; typically 2 years against manufacturing defects.

Available Now

The Legrand CTX³ 3-pole contactor 100A AC-3 rating is available for immediate purchase, ideal for industrial and tertiary motor control applications.
