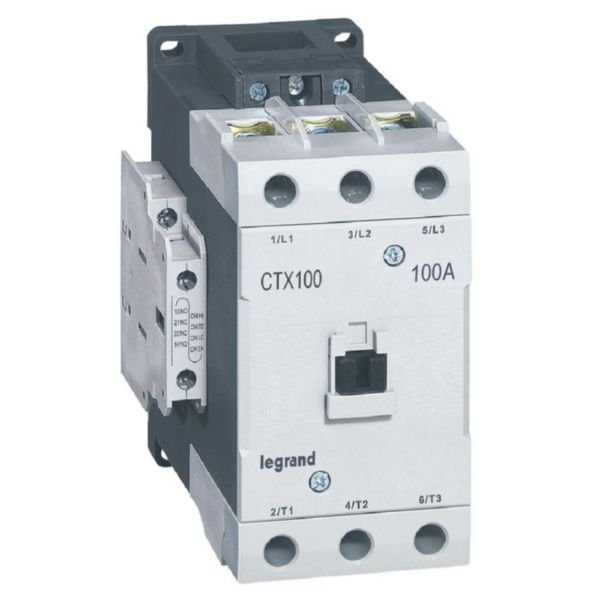

3-Pole Contactor 100A AC-3 Rating | 2NO+2NC Auxiliary Contacts | DC Actuation Voltage | @Each of 1 | by Legrand

BRAND: Legrand
SKU: 416221
$789.90 List price: $984.30
+ −
30 Days Return Delivery Options
The 3-pole contactor with a 100A AC-3 rating is perfect for industrial and tertiary motor control applications. Featuring 2 normally open and 2 normally closed auxiliary contacts, it operates on a DC voltage of 20.4-26.4 V. With an impressive endurance of up to 12 million mechanical operations, this contactor ensures reliability and efficiency in switching inductive and non-inductive loads.

Product Name/Title: 3-Pole Contactor 100A AC-3 Rating | 2NO+2NC Auxiliary Contacts | DC Actuation Voltage | @Each of 1 | by Legrand

Brand: Legrand

SKU: 416221

Alternatively Known As: 3-pole motor contactor, 100A contactor, DC coil contactor, Legrand motor contactor CTX3

Technical Specifications
  • Rated control supply voltage: 20.4-26.4 V DC
  • Number of main contacts: 3 normally open
  • Auxiliary contacts: 2 normally open + 2 normally closed
  • Rated operation current AC-1 (400 V): 160 A
  • Rated operation current AC-3 (400 V): 105 A
  • Rated operation power AC-3 (400 V): 55 kW
  • Rated operation current AC-4 (400 V): 75 A
  • Rated operation power AC-4 (400 V): 37 kW
  • Screw terminal capacity: Power 2 x 10mm² to 70mm², Coil 0.75mm² to 2.5mm², Auxiliary circuit 0.75mm² to 2.5mm²
  • Number of operation cycles: 12 million mechanical, 2 million electrical
  • Operation cycles per hour (AC-3): 1800
  • Mounting: 35 mm top hat rail (IEC 60715) or mounting plate
  • Dimensions (H x L x W): 90mm x 70mm x 45mm
  • Weight: 1.5 kg
Key Features
  • 3-pole contactor with 100A AC-3 rating
  • 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts
  • DC coil voltage 20.4-26.4 V
  • Endurance up to 12 million mechanical and 2 million electrical operations
  • Mounting on 35 mm top hat rail or mounting plate
  • Coil supply possible from top or bottom side
  • Removable front cover for visual inspection of arc chambers and contacts
  • Screw terminals for power and coil connections
Professional Installation Requirements
  • Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper mounting.
Applications
  • Tertiary and industrial motor control installations
  • Switching of inductive and non-inductive loads
  • Control of 3-phase motors up to 55 kW at 415V
Standards & Compliance
  • AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Designed with substance-restriction compliance and environmentally conscious manufacturing process
  • High endurance reduces need for frequent replacements, minimizing waste
Warranty Information

Standard manufacturer warranty applies; please refer to Legrand warranty terms for details.

Available Now

Legrand CTX³ 3-pole contactor is available for immediate purchase, ideal for industrial and tertiary motor control applications.
