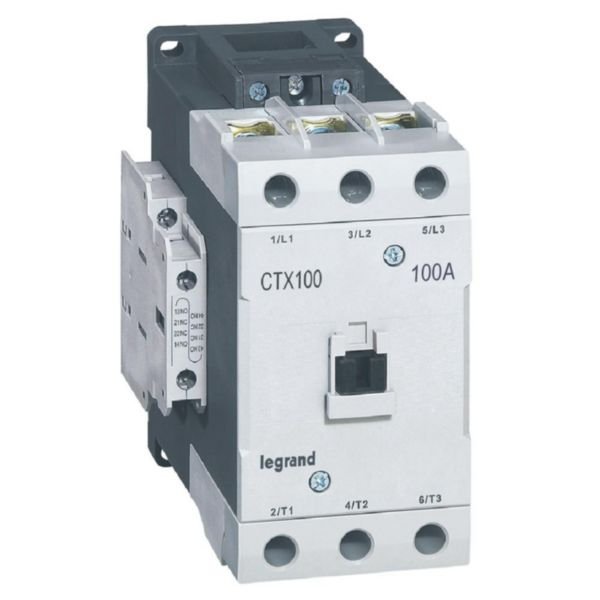

3-Pole Contactor 100A AC-3 Rating | Screw Terminals | Modular Design | @Each of 1 | by Legrand
The 3-pole contactor with a 100A AC-3 rating is perfect for industrial motor control and protection. Designed for switching 3-phase motors up to 55 kW at 415V, it features screw terminals for cables from 2 x 10mm² to 70mm². With an endurance of up to 12 million mechanical operations, this modular contactor is ideal for both tertiary and industrial electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated operation current Ie at AC-3, 400 V: 105 A
- Rated operation power at AC-3, 400 V: 55 kW
- Rated operation current Ie at AC-1, 400 V: 160 A
- Rated operation current Ie at AC-4, 400 V: 75 A
- Rated operation power at AC-4, 400 V: 37 kW
- Rated control supply voltage AC 50/60 Hz: 352.75-456.5 V
- Number of normally open main contacts: 3
- Number of normally closed main contacts: 0
- Number of auxiliary contacts NO: 2
- Number of auxiliary contacts NC: 2
- Type of electrical connection: Cable clamp screw terminals
- Mounting: 35mm DIN rail or mounting plate
- Dimensions (H x L x W): 90mm x 70mm x 45mm
- Weight: 1.5 kg
Key Features
- 3-pole contactor with 100A AC-3 rating for switching 3-phase motors up to 55 kW at 415V
- 2NO + 2NC auxiliary contacts with NC mirror contact compliant with IEC 60947-4-1
- Screw terminals supporting power cables from 2 x 10mm² to 70mm²
- Endurance of up to 12 million mechanical operations and 2 million electrical operations
- Mountable on 35mm 'top hat' mounting rail (IEC 60715) or mounting plate
- Coil supply possible from top or bottom side
- Removable front cover for visual inspection of arc chambers and contacts
- Factory assembled auxiliary contacts for easy installation
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper mounting on DIN rail or panel.
Applications
- Industrial motor control and protection
- Tertiary and industrial electrical installations
- Switching of inductive and non-inductive loads
Standards & Compliance
- Complies with AS/NZS 60947-4-1 for low-voltage switchgear and controlgear - Contactors and motor-starters
Environmental Benefits
- Designed with an environmentally conscious process complying with substance-restriction requirements
- Long mechanical and electrical endurance reduces replacement frequency and waste
Warranty Information
Standard Legrand warranty applies; typically 2 years against manufacturing defects.
Available Now
Legrand CTX³ 3-pole contactor is available for immediate purchase, ideal for industrial and tertiary motor control applications.
