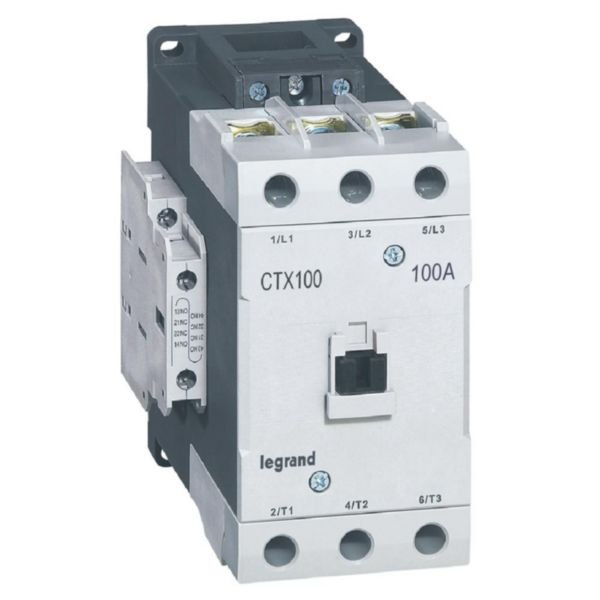

3-Pole Contactor 100A AC-3 Rating | Screw Terminals | Modular Design | @Each of 1 | by Legrand
The 3-pole contactor with a 100A AC-3 rating is perfect for controlling 3-phase motors up to 55 kW. Designed with screw terminals for easy installation and a compact modular design, it ensures optimal space utilization in control cabinets. Ideal for industrial and tertiary electrical installations, this contactor offers exceptional endurance with up to 12 million mechanical operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3-Pole Contactor 100A AC-3 Rating | Screw Terminals | Modular Design | @Each of 1 | by Legrand
Brand: Legrand
SKU: 416224
Alternatively Known As: 3-pole motor contactor, 100A contactor, Legrand CTX3 contactor, modular motor contactor
Technical Specifications
- Rated operation current AC-3 at 400V: 105A
- Rated operation power AC-3 at 400V: 55 kW
- Rated operation current AC-1 at 400V: 160A
- Rated operation current AC-4 at 400V: 75A
- Rated operation power AC-4 at 400V: 37 kW
- Control supply voltage AC 50/60 Hz: 93.5-121 V
- Number of main contacts: 3 normally open
- Number of auxiliary contacts: 2 normally open + 2 normally closed
- Electrical connection: Screw terminals for cable clamps
- Mechanical endurance: 12 million operations
- Electrical endurance: 2 million operations
- Number of operation cycles per hour (AC-3): 1800
- Dimensions (H x L x W): 90mm x 70mm x 45mm
- Weight: 1.5 kg
Key Features
- 100A AC-3 rating for switching 3-phase motors up to 55 kW at 415V
- 2NO + 2NC auxiliary contacts with mirror contact according to IEC 60947-4-1
- Screw terminals for cables from 2x10mm² to 70mm²
- Endurance up to 12 million mechanical and 2 million electrical operations
- Coil supply possible from top or bottom side
- Removable front cover for visual inspection of arc chambers and contacts
- Compact modular design for space optimization in control cabinets
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper integration into motor control systems.
Applications
- Tertiary and industrial electrical installations
- Switching of inductive and non-inductive loads
- Control of 3-phase motors up to 55 kW
- Distribution boards and motor control panels
Standards & Compliance
- Complies with AS/NZS 60947-4-1 for low-voltage switchgear and controlgear - Contactors and motor-starters
Environmental Benefits
- Designed with substance-restriction compliance for environmental safety
- Manufactured through an environmentally conscious process
- Long operational life reduces waste and replacement frequency
Warranty Information
Standard Legrand warranty applies; typically 2 years against manufacturing defects.
Available Now
Legrand CTX³ 3-pole contactor 100A AC-3 rating with screw terminals is available for immediate purchase, ideal for industrial and tertiary motor control applications.
